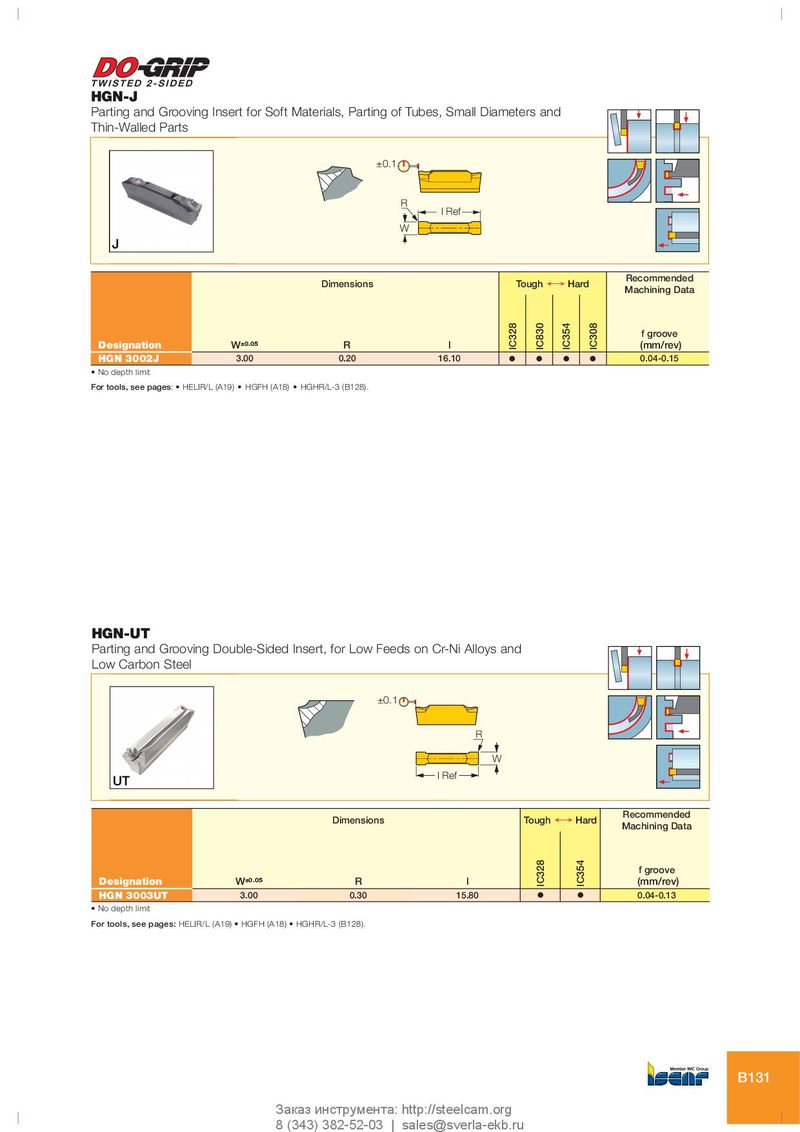

HGN-J Parting and Grooving Insert for Soft Materials, Parting of Tubes, Small Diameters and Thin-Walled Parts ±0.1 R l Ref W Recommended Dimensions Tough ¥ Hard Machining Data f groove Designation W ±0.05 R l IC328 IC830 IC354 IC308 (mm/rev) HGN 3002J 3.00 0.20 16.10 O O O O 0.04-0.15 • No depth limit For tools, see pages: • HELIR/L (A19) • HGFH (A18) • HGHR/L-3 (B128). HGN-UT Parting and Grooving Double-Sided Insert, for Low Feeds on Cr-Ni Alloys and Low Carbon Steel ±0.1 R W l Ref Recommended Dimensions Tough ¥ Hard Machining Data f groove Designation W ±0.05 R l IC328 IC354 (mm/rev) HGN 3003UT 3.00 0.30 15.80 O O 0.04-0.13 • No depth limit For tools, see pages: HELIR/L (A19) • HGFH (A18) • HGHR/L-3 (B128). B131 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
