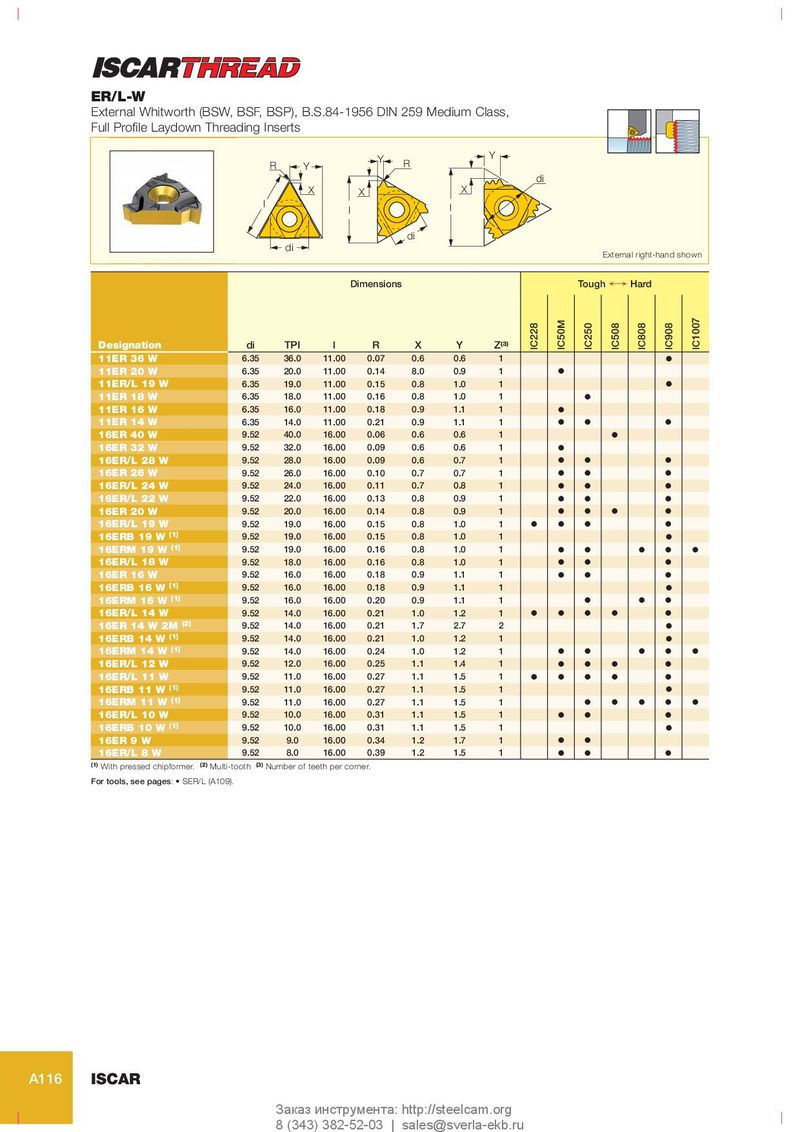

ER/L-W External Whitworth (BSW, BSF, BSP), B.S.84-1956 DIN 259 Medium Class, Full Profile Laydown Threading Inserts Y Y R Y R di X X X l l l di di External right-hand shown Dimensions Tough ¥ Hard Designation di TPI l R X Y Z (3) IC228 IC50M IC250 IC508 IC808 IC908 IC1007 11ER 36 W 6.35 36.0 11.00 0.07 0.6 0.6 1 O 11ER 20 W 6.35 20.0 11.00 0.14 8.0 0.9 1 O 11ER/L 19 W 6.35 19.0 11.00 0.15 0.8 1.0 1 O 11ER 18 W 6.35 18.0 11.00 0.16 0.8 1.0 1 O 11ER 16 W 6.35 16.0 11.00 0.18 0.9 1.1 1 O 11ER 14 W 6.35 14.0 11.00 0.21 0.9 1.1 1 O O O 16ER 40 W 9.52 40.0 16.00 0.06 0.6 0.6 1 O 16ER 32 W 9.52 32.0 16.00 0.09 0.6 0.6 1 O 16ER/L 28 W 9.52 28.0 16.00 0.09 0.6 0.7 1 O O O 16ER 26 W 9.52 26.0 16.00 0.10 0.7 0.7 1 O O O 16ER/L 24 W 9.52 24.0 16.00 0.11 0.7 0.8 1 O O O 16ER/L 22 W 9.52 22.0 16.00 0.13 0.8 0.9 1 O O O 16ER 20 W 9.52 20.0 16.00 0.14 0.8 0.9 1 O O O O 16ER/L 19 W 9.52 19.0 16.00 0.15 0.8 1.0 1 O O O O 16ERB 19 W (1) 9.52 19.0 16.00 0.15 0.8 1.0 1 O 16ERM 19 W (1) 9.52 19.0 16.00 0.16 0.8 1.0 1 O O O O O 16ER/L 18 W 9.52 18.0 16.00 0.16 0.8 1.0 1 O O O 16ER 16 W 9.52 16.0 16.00 0.18 0.9 1.1 1 O O O 16ERB 16 W (1) 9.52 16.0 16.00 0.18 0.9 1.1 1 O 16ERM 16 W (1) 9.52 16.0 16.00 0.20 0.9 1.1 1 O O O 16ER/L 14 W 9.52 14.0 16.00 0.21 1.0 1.2 1 O O O O O 16ER 14 W 2M (2) 9.52 14.0 16.00 0.21 1.7 2.7 2 O 16ERB 14 W (1) 9.52 14.0 16.00 0.21 1.0 1.2 1 O 16ERM 14 W (1) 9.52 14.0 16.00 0.24 1.0 1.2 1 O O O O O 16ER/L 12 W 9.52 12.0 16.00 0.25 1.1 1.4 1 O O O O 16ER/L 11 W 9.52 11.0 16.00 0.27 1.1 1.5 1 O O O O O 16ERB 11 W (1) 9.52 11.0 16.00 0.27 1.1 1.5 1 O 16ERM 11 W (1) 9.52 11.0 16.00 0.27 1.1 1.5 1 O O O O O 16ER/L 10 W 9.52 10.0 16.00 0.31 1.1 1.5 1 O O O 16ERB 10 W (1) 9.52 10.0 16.00 0.31 1.1 1.5 1 O 16ER 9 W 9.52 9.0 16.00 0.34 1.2 1.7 1 O O 16ER/L 8 W 9.52 8.0 16.00 0.39 1.2 1.5 1 O O O (1) With pressed chipformer. (2) Multi-tooth (3) Number of teeth per corner. For tools, see pages: • SER/L (A109). A116 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
