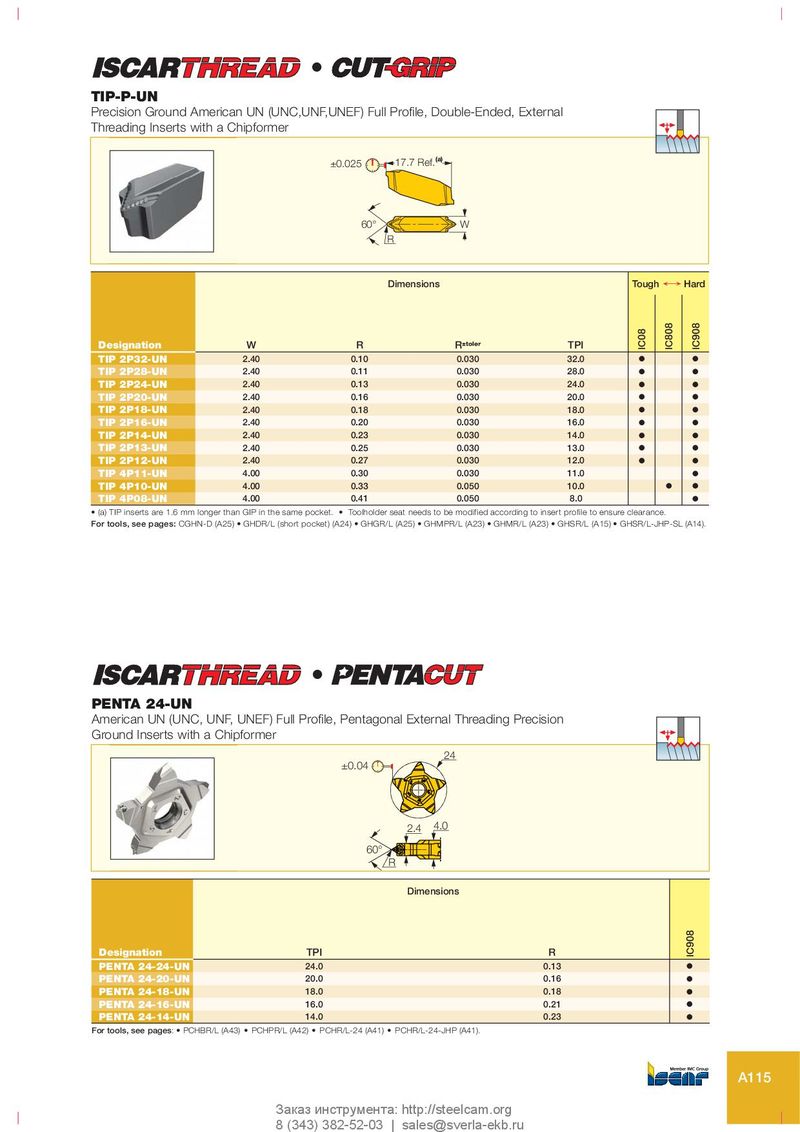

 O  TIP-P-UN Precision Ground American UN (UNC,UNF,UNEF) Full Profile, Double-Ended, External Threading Inserts with a Chipformer (a) ±0.025 17.7 Ref. 60° W R Dimensions Tough ¥ Hard Designation W R R ±toler TPI IC08 IC808 IC908 TIP 2P32-UN 2.40 0.10 0.030 32.0 O O TIP 2P28-UN 2.40 0.11 0.030 28.0 O O TIP 2P24-UN 2.40 0.13 0.030 24.0 O O TIP 2P20-UN 2.40 0.16 0.030 20.0 O O TIP 2P18-UN 2.40 0.18 0.030 18.0 O O TIP 2P16-UN 2.40 0.20 0.030 16.0 O O TIP 2P14-UN 2.40 0.23 0.030 14.0 O O TIP 2P13-UN 2.40 0.25 0.030 13.0 O O TIP 2P12-UN 2.40 0.27 0.030 12.0 O O TIP 4P11-UN 4.00 0.30 0.030 11.0 O TIP 4P10-UN 4.00 0.33 0.050 10.0 O O TIP 4P08-UN 4.00 0.41 0.050 8.0 O • (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance. For tools, see pages: CGHN-D (A25) • GHDR/L (short pocket) (A24) • GHGR/L (A25) • GHMPR/L (A23) • GHMR/L (A23) • GHSR/L (A15) • GHSR/L-JHP-SL (A14).  O  PENTA 24-UN American UN (UNC, UNF, UNEF) Full Profile, Pentagonal External Threading Precision Ground Inserts with a Chipformer 24 ±0.04 2.4 4.0 60° R Dimensions Designation TPI R IC908 PENTA 24-24-UN 24.0 0.13 O PENTA 24-20-UN 20.0 0.16 O PENTA 24-18-UN 18.0 0.18 O PENTA 24-16-UN 16.0 0.21 O PENTA 24-14-UN 14.0 0.23 O For tools, see pages: • PCHBR/L (A43) • PCHPR/L (A42) • PCHR/L-24 (A41) • PCHR/L-24-JHP (A41). A115 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
