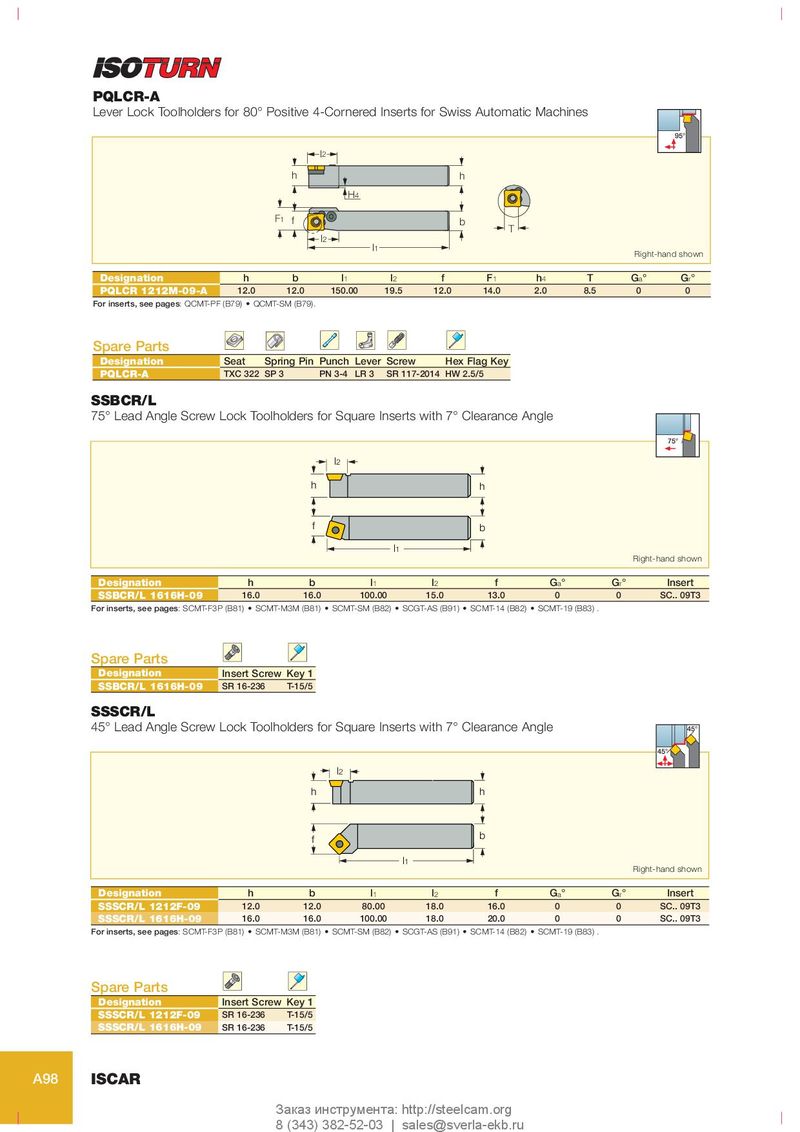

Каталог Iscar инструмент для мелкоразмерной обработки - страница 116

PQLCR-A Lever Lock Toolholders for 80° Positive 4-Cornered Inserts for Swiss Automatic Machines 95° l 2 h h H 4 F 1 f b T l 2 l 1 Right-hand shown Designation h b l 1 l 2 f F 1 h 4 T G a ° G r ° PQLCR 1212M-09-A 12.0 12.0 150.00 19.5 12.0 14.0 2.0 8.5 0 0 For inserts, see pages: QCMT-PF (B79) • QCMT-SM (B79). Spare Parts Designation Seat Spring Pin Punch Lever Screw Hex Flag Key PQLCR-A TXC 322 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5/5 SSBCR/L 75° Lead Angle Screw Lock Toolholders for Square Inserts with 7° Clearance Angle 75° l2 h h f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SSBCR/L 1616H-09 16.0 16.0 100.00 15.0 13.0 0 0 SC.. 09T3 For inserts, see pages: SCMT-F3P (B81) • SCMT-M3M (B81) • SCMT-SM (B82) • SCGT-AS (B91) • SCMT-14 (B82) • SCMT-19 (B83) . Spare Parts Designation Insert Screw Key 1 SSBCR/L 1616H-09 SR 16-236 T-15/5 SSSCR/L 45° Lead Angle Screw Lock Toolholders for Square Inserts with 7° Clearance Angle 45° 45° l2 h h f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SSSCR/L 1212F-09 12.0 12.0 80.00 18.0 16.0 0 0 SC.. 09T3 SSSCR/L 1616H-09 16.0 16.0 100.00 18.0 20.0 0 0 SC.. 09T3 For inserts, see pages: SCMT-F3P (B81) • SCMT-M3M (B81) • SCMT-SM (B82) • SCGT-AS (B91) • SCMT-14 (B82) • SCMT-19 (B83) . Spare Parts Designation Insert Screw Key 1 SSSCR/L 1212F-09 SR 16-236 T-15/5 SSSCR/L 1616H-09 SR 16-236 T-15/5 A98 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
