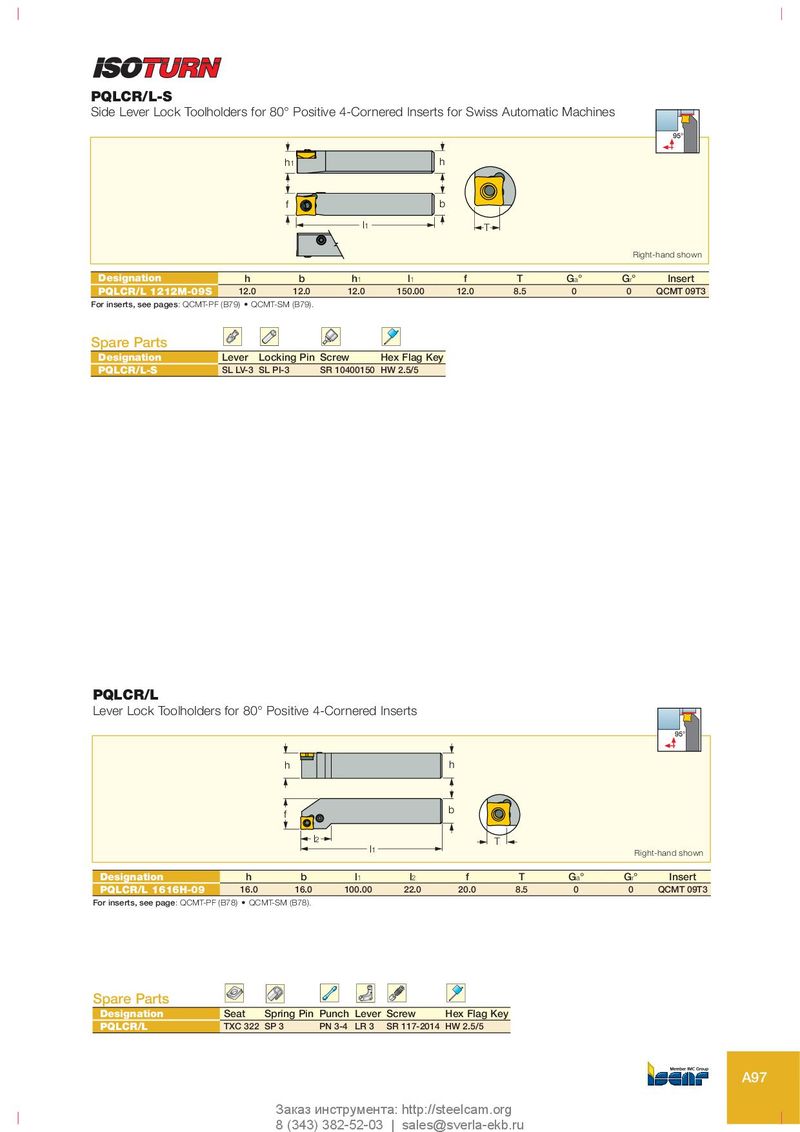

PQLCR/L-S Side Lever Lock Toolholders for 80° Positive 4-Cornered Inserts for Swiss Automatic Machines 95° h1 h f b l1 T Right-hand shown Designation h b h 1 l 1 f T G a ° G r ° Insert PQLCR/L 1212M-09S 12.0 12.0 12.0 150.00 12.0 8.5 0 0 QCMT 09T3 For inserts, see pages: QCMT-PF (B79) • QCMT-SM (B79). Spare Parts Designation Lever Locking Pin Screw Hex Flag Key PQLCR/L-S SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PQLCR/L Lever Lock Toolholders for 80° Positive 4-Cornered Inserts 95° h h b f l2 T l1 Right-hand shown Designation h b l 1 l 2 f T G a ° G r ° Insert PQLCR/L 1616H-09 16.0 16.0 100.00 22.0 20.0 8.5 0 0 QCMT 09T3 For inserts, see page: QCMT-PF (B78) • QCMT-SM (B78). Spare Parts Designation Seat Spring Pin Punch Lever Screw Hex Flag Key PQLCR/L TXC 322 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5/5 A97 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
