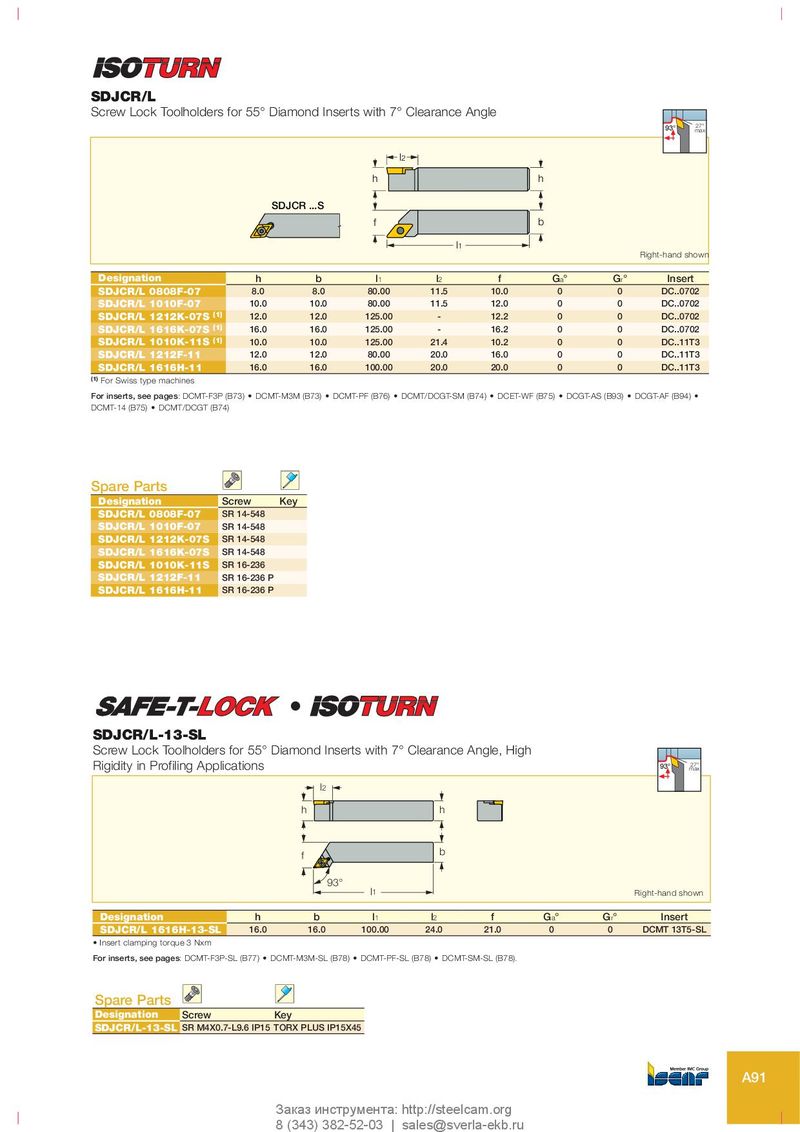

SDJCR/L Screw Lock Toolholders for 55° Diamond Inserts with 7° Clearance Angle 93° 27° max l2 h h SDJCR ...S f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SDJCR/L 0808F-07 8.0 8.0 80.00 11.5 10.0 0 0 DC..0702 SDJCR/L 1010F-07 10.0 10.0 80.00 11.5 12.0 0 0 DC..0702 SDJCR/L 1212K-07S (1) 12.0 12.0 125.00 - 12.2 0 0 DC..0702 SDJCR/L 1616K-07S (1) 16.0 16.0 125.00 - 16.2 0 0 DC..0702 SDJCR/L 1010K-11S (1) 10.0 10.0 125.00 21.4 10.2 0 0 DC..11T3 SDJCR/L 1212F-11 12.0 12.0 80.00 20.0 16.0 0 0 DC..11T3 SDJCR/L 1616H-11 16.0 16.0 100.00 20.0 20.0 0 0 DC..11T3 (1) For Swiss type machines For inserts, see pages: DCMT-F3P (B73) • DCMT-M3M (B73) • DCMT-PF (B76) • DCMT/DCGT-SM (B74) • DCET-WF (B75) • DCGT-AS (B93) • DCGT-AF (B94) • DCMT-14 (B75) • DCMT/DCGT (B74) Spare Parts Designation Screw Key SDJCR/L 0808F-07 SR 14-548 SDJCR/L 1010F-07 SR 14-548 SDJCR/L 1212K-07S SR 14-548 SDJCR/L 1616K-07S SR 14-548 SDJCR/L 1010K-11S SR 16-236 SDJCR/L 1212F-11 SR 16-236 P SDJCR/L 1616H-11 SR 16-236 P  O  SDJCR/L-13-SL Screw Lock Toolholders for 55° Diamond Inserts with 7° Clearance Angle, High Rigidity in Profiling Applications 93° 27° max l 2 h h f b 93° l 1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SDJCR/L 1616H-13-SL 16.0 16.0 100.00 24.0 21.0 0 0 DCMT 13T5-SL • Insert clamping torque 3 Nxm For inserts, see pages: DCMT-F3P-SL (B77) • DCMT-M3M-SL (B78) • DCMT-PF-SL (B78) • DCMT-SM-SL (B78). Spare Parts Designation Screw Key SDJCR/L-13-SL SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 A91 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
