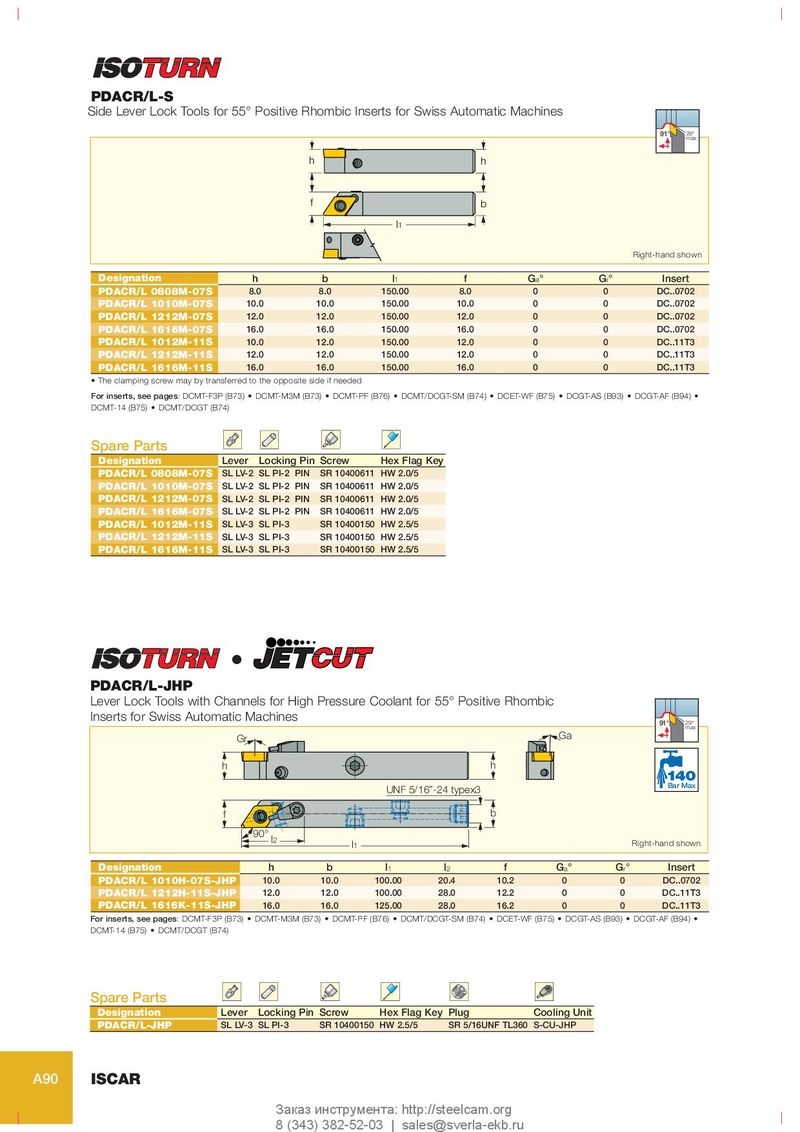

PDACR/L-S Side Lever Lock Tools for 55° Positive Rhombic Inserts for Swiss Automatic Machines 91° 29° max h h f b l1 Right-hand shown Designation h b l 1 f G a ° G r ° Insert PDACR/L 0808M-07S 8.0 8.0 150.00 8.0 0 0 DC..0702 PDACR/L 1010M-07S 10.0 10.0 150.00 10.0 0 0 DC..0702 PDACR/L 1212M-07S 12.0 12.0 150.00 12.0 0 0 DC..0702 PDACR/L 1616M-07S 16.0 16.0 150.00 16.0 0 0 DC..0702 PDACR/L 1012M-11S 10.0 12.0 150.00 12.0 0 0 DC..11T3 PDACR/L 1212M-11S 12.0 12.0 150.00 12.0 0 0 DC..11T3 PDACR/L 1616M-11S 16.0 16.0 150.00 16.0 0 0 DC..11T3 • The clamping screw may by transferred to the opposite side if needed For inserts, see pages: DCMT-F3P (B73) • DCMT-M3M (B73) • DCMT-PF (B76) • DCMT/DCGT-SM (B74) • DCET-WF (B75) • DCGT-AS (B93) • DCGT-AF (B94) • DCMT-14 (B75) • DCMT/DCGT (B74) Spare Parts Designation Lever Locking Pin Screw Hex Flag Key PDACR/L 0808M-07S SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PDACR/L 1010M-07S SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PDACR/L 1212M-07S SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PDACR/L 1616M-07S SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PDACR/L 1012M-11S SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PDACR/L 1212M-11S SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PDACR/L 1616M-11S SL LV-3 SL PI-3 SR 10400150 HW 2.5/5  O  PDACR/L-JHP Lever Lock Tools with Channels for High Pressure Coolant for 55° Positive Rhombic Inserts for Swiss Automatic Machines 91° 29° max Gr Ga h h Bar Max UNF 5/16”-24 typex3 f b 90° l2 l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert PDACR/L 1010H-07S-JHP 10.0 10.0 100.00 20.4 10.2 0 0 DC..0702 PDACR/L 1212H-11S-JHP 12.0 12.0 100.00 28.0 12.2 0 0 DC..11T3 PDACR/L 1616K-11S-JHP 16.0 16.0 125.00 28.0 16.2 0 0 DC..11T3 For inserts, see pages: DCMT-F3P (B73) • DCMT-M3M (B73) • DCMT-PF (B76) • DCMT/DCGT-SM (B74) • DCET-WF (B75) • DCGT-AS (B93) • DCGT-AF (B94) • DCMT-14 (B75) • DCMT/DCGT (B74) Spare Parts Designation Lever Locking Pin Screw Hex Flag Key Plug Cooling Unit PDACR/L-JHP SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP A90 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
