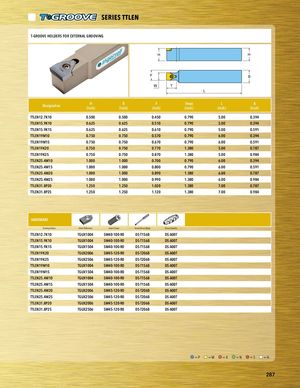

SERIES TTLEN T-GROOVE HOLDERS FOR EXTERNAL GROOVING H H F B W T L Designation H B F Tmax L A(inch)(inch)(inch)(inch)(inch)(inch) TTLEN12.7K10 0.500 0.500 0.450 0.790 5.00 0.394 TTLEN15.9K10 0.625 0.625 0.510 0.790 5.00 0.394 TTLEN15.9K15 0.625 0.625 0.610 0.790 5.00 0.591 TTLEN19M10 0.750 0.750 0.570 0.790 6.00 0.394 TTLEN19M15 0.750 0.750 0.670 0.790 6.00 0.591 TTLEN19K20 0.750 0.750 0.770 1.380 5.00 0.787 TTLEN19K25 0.750 0.750 0.870 1.380 5.00 0.984 TTLEN25.4M10 1.000 1.000 0.700 0.790 6.00 0.394 TTLEN25.4M15 1.000 1.000 0.800 0.790 6.00 0.591 TTLEN25.4M20 1.000 1.000 0.890 1.380 6.00 0.787 TTLEN25.4M25 1.000 1.000 0.990 1.380 6.00 0.984 TTLEN31.8P20 1.250 1.250 1.020 1.380 7.00 0.787 TTLEN31.8P25 1.250 1.250 1.120 1.380 7.00 0.984 HARDWARE Turning Holder Insert Reference Insert Screw Screw Driver Blade Driver Handle TTLEN12.7K10 TGUX1004 SM40-100-R0 DS-T156B DS-A00T TTLEN15.9K10 TGUX1004 SM40-100-R0 DS-T156B DS-A00T TTLEN15.9K15 TGUX1504 SM40-100-R0 DS-T156B DS-A00T TTLEN19K20 TGUX2006 SM45-120-R0 DS-T206B DS-A00T TTLEN19K25 TGUX2506 SM45-120-R0 DS-T206B DS-A00T TTLEN19M10 TGUX1004 SM40-100-R0 DS-T156B DS-A00T TTLEN19M15 TGUX1504 SM40-100-R0 DS-T156B DS-A00T TTLEN25.4M10 TGUX1004 SM40-100-R0 DS-T156B DS-A00T TTLEN25.4M15 TGUX1504 SM40-100-R0 DS-T156B DS-A00T TTLEN25.4M20 TGUX2006 SM45-120-R0 DS-T206B DS-A00T TTLEN25.4M25 TGUX2506 SM45-120-R0 DS-T206B DS-A00T TTLEN31.8P20 TGUX2006 SM45-120-R0 DS-T206B DS-A00T TTLEN31.8P25 TGUX2506 SM45-120-R0 DS-T206B DS-A00T =P =M =K =N =S =H 287
