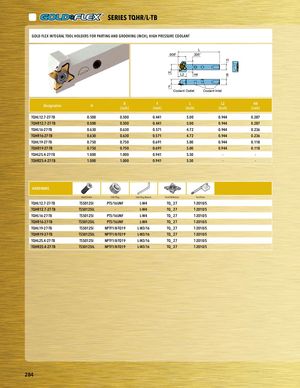

PART SERIES SERIES TQHR/L-TB PGAORLTDSFELREIXESINTEGRAL TOOL HOLDERS FOR PARTING AND GROOVING (INCH), HIGH PRESSURE COOLANT L .906” .335” H H L2 H4 B F Coolant Outlet Coolant Inlet Designation H B F L L2 H4(inch)(inch)(inch)(inch)(inch) TQHL12.7-27-TB 0.500 0.500 0.441 5.00 0.944 0.287 PTlaQcHeRh1o2l.d7-e2r7-TB 0.500 0.500 0.441 5.00 0.944 0.287 TQHL16-27-TB 0.630 0.630 0.571 4.72 0.944 0.236 TQHR16-27-TB 0.630 0.630 0.571 4.72 0.944 0.236 TQHL19-27-TB 0.750 0.750 0.691 5.00 0.944 0.118 TQHR19-27-TB 0.750 0.750 0.691 5.00 0.944 0.118 TQHL25.4-27-TB 1.000 1.000 0.941 5.50 - - TQHR25.4-27-TB 1.000 1.000 0.941 5.50 - - HARDWARE Insert Screw Inlet Plug Inlet Plug Wrench Insert Reference Torx Driver TQHL12.7-27-TB TS50125I PT5/16UNF L-W4 TQ_ 27 T-2010/5 TQHR12.7-27-TB TS50125IL - L-W4 TQ_ 27 T-2010/5 TQHL16-27-TB TS50125I PT5/16UNF L-W4 TQ_ 27 T-2010/5 TQHR16-27-TB TS50125IL PT5/16UNF L-W4 TQ_ 27 T-2010/5 TQHL19-27-TB TS50125I NPTF1/8-TQ19 L-W3/16 TQ_ 27 T-2010/5 TQHR19-27-TB TS50125IL NPTF1/8-TQ19 L-W3/16 TQ_ 27 T-2010/5 TQHL25.4-27-TB TS50125I NPTF1/8-TQ19 L-W3/16 TQ_ 27 T-2010/5 TQHR25.4-27-TB TS50125IL NPTF1/8-TQ19 L-W3/16 TQ_ 27 T-2010/5 HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 284
