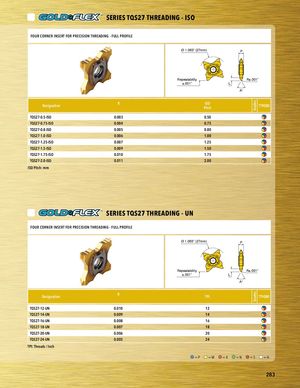

GradesGrades PART SERIES SERIES TQS27 THREADING - ISO PFOARUTRSCEORRIENSER INSERT FOR PRECISION THREADING - FULL PROFILE Ø 1.063” (27mm) P Repeatability R±.001” ±.001” L A° Designatiaosndf R ISOPitch TT9080 TQS27-0.5-ISO 0.003 0.50 PTlaQcSe2h7-o0l.d75e-rISO 0.004 0.75 TQS27-0.8-ISO 0.005 0.80 TQS27-1.0-ISO 0.006 1.00 TQS27-1.25-ISO 0.007 1.25 TQS27-1.5-ISO 0.009 1.50 TQS27-1.75-ISO 0.010 1.75 TQS27-2.0-ISO 0.011 2.00 ISO Pitch: mm PART SERIES PART SERIES SERIES TQS27 THREADING - UN FOUR CORNER INSERT FOR PRECISION THREADING - FULL PROFILE Ø 1.063” (27mm) P Repeatability R±.001” ±.001” L asdf A° Designation R TPI TT9080 Placeholder TQS27-12-UN 0.010 12 TQS27-14-UN 0.009 14 TQS27-16-UN 0.008 16 TQS27-18-UN 0.007 18 TQS27-20-UN 0.006 20 TQS27-24-UN 0.005 24 TPI: Threads / Inch =P =M =K =N =S =H 283
