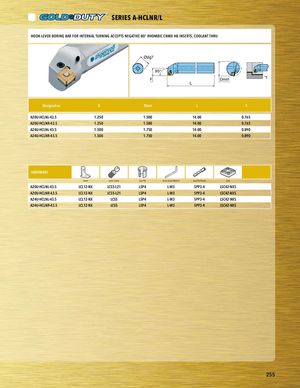

PART SERIES SERIES A-HCLNR/L PHAOROTKS-ELERVIEESR-BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE 80° RHOMBIC CNMX HB INSERTS, COOLANT THRU Ødg7 95° F Dmin L Designation D Dmin L F A20U-HCLNL-43.5 1.250 1.500 14.00 0.765 PAla2c0eUh-HoCldLNeRr-43.5 1.250 1.500 14.00 0.765 A24U-HCLNL-43.5 1.500 1.750 14.00 0.890 A24U-HCLNR-43.5 1.500 1.750 14.00 0.890 HARDWARE Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat A20U-HCLNL-43.5 LCL12-NX LCS5-L21 LSP4 L-W3 SPP3-4 LSC42-NXS A20U-HCLNR-43.5 LCL12-NX LCS5-L21 LSP4 L-W3 SPP3-4 LSC42-NXS A24U-HCLNL-43.5 LCL12-NX LCS5 LSP4 L-W3 SPP3-4 LSC42-NXS A24U-HCLNR-43.5 LCL12-NX LCS5 LSP4 L-W3 SPP3-4 LSC42-NXS HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 255
