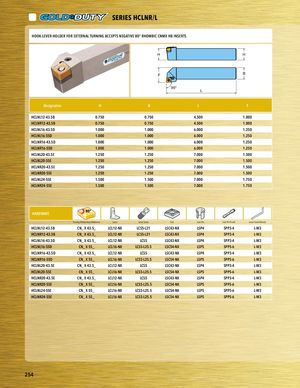

Общий каталог Ingersoll 2016 - 2017 - страница 256

PART SERIES SERIES HCLNR/L PHAOROTKS-ELERVIEESR-HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 80° RHOMBIC CNMX HB INSERTS H H F B 95° L Designation H B L F HCLNL12-43.5B 0.750 0.750 4.500 1.000 PHlaCcLeNhRo1l2d-4e3r.5B 0.750 0.750 4.500 1.000 HCLNL16-43.5D 1.000 1.000 6.000 1.250 HCLNL16-55D 1.000 1.000 6.000 1.250 HCLNR16-43.5D 1.000 1.000 6.000 1.250 HCLNR16-55D 1.000 1.000 6.000 1.250 HCLNL20-43.5E 1.250 1.250 7.000 1.500 HCLNL20-55E 1.250 1.250 7.000 1.500 HCLNR20-43.5E 1.250 1.250 7.000 1.500 HCLNR20-55E 1.250 1.250 7.000 1.500 HCLNL24-55E 1.500 1.500 7.000 1.750 HCLNR24-55E 1.500 1.500 7.000 1.750 HARDWARE Turning Holder Insert Reference Lever Lever Screw Seat Seat Pin Seat Pin Punch Lever Screw Wrench HCLNL12-43.5B CN_ X 43.5_ LCL12-NX LCS5-L21 LSC43-NX LSP4 SPP3-4 L-W3 HCLNR12-43.5B CN_ X 43.5_ LCL12-NX LCS5-L21 LSC43-NX LSP4 SPP3-4 L-W3 HCLNL16-43.5D CN_ X 43.5_ LCL12-NX LCS5 LSC43-NX LSP4 SPP3-4 L-W3 HCLNL16-55D CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3 HCLNR16-43.5D CN_ X 43.5_ LCL12-NX LCS5 LSC43-NX LSP4 SPP3-4 L-W3 HCLNR16-55D CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3 HCLNL20-43.5E CN_ X 43.5_ LCL12-NX LCS5 LSC43-NX LSP4 SPP3-4 L-W3 HCLNL20-55E CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3 HCLNR20-43.5E CN_ X 43.5_ LCL12-NX LCS5 LSC43-NX LSP4 SPP3-4 L-W3 HCLNR20-55E CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3 HCLNL24-55E CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3 HCLNR24-55E CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3 HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 254
