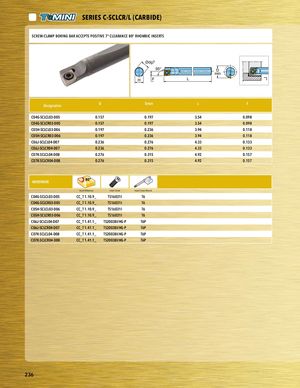

PART SERIES SERIES C-SCLCR/L (CARBIDE) PSCARETWSE-CRLIEASMP BORING BAR ACCEPTS POSITIVE 7° CLEARANCE 80° RHOMBIC INSERTS Ødg7 95° mDin H F L Designation D Dmin L F C04G-SCLCL03-D05 0.157 0.197 3.54 0.098 PCla0c4eGh-SoClLdCeRr03-D05 0.157 0.197 3.54 0.098 C05H-SCLCL03-D06 0.197 0.236 3.94 0.118 C05H-SCLCR03-D06 0.197 0.236 3.94 0.118 C06J-SCLCL04-D07 0.236 0.276 4.33 0.133 C06J-SCLCR04-D07 0.236 0.276 4.33 0.133 C07K-SCLCL04-D08 0.276 0.315 4.92 0.157 C07K-SCLCR04-D08 0.276 0.315 4.92 0.157 HARDWARE Insert Reference Insert Screw Insert Screw Wrench C04G-SCLCL03-D05 CC_T 1.10.9_ TS16031I T6 C04G-SCLCR03-D05 CC_T 1.10.9_ TS16031I T6 C05H-SCLCL03-D06 CC_T 1.10.9_ TS16031I T6 C05H-SCLCR03-D06 CC_T 1.10.9_ TS16031I T6 C06J-SCLCL04-D07 CC_T 1.41.1_ TS20038I/HG-P T6P C06J-SCLCR04-D07 CC_T 1.41.1_ TS20038I/HG-P T6P C07K-SCLCL04-D08 CC_T 1.41.1_ TS20038I/HG-P T6P C07K-SCLCR04-D08 CC_T 1.41.1_ TS20038I/HG-P T6P 236
