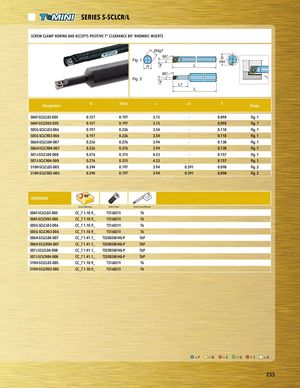

SERIES S-SCLCR/L SCREW-CLAMP BORING BAR ACCEPTS POSITIVE 7° CLEARANCE 80° RHOMBIC INSERTS Ødg7 95°Fig. 1 Dmin H F L 95° Fig. 2 F L1 L Designation D Dmin L L1 F Shape S04F-SCLCL03-D05 0.157 0.197 3.15 - 0.098 Fig. 1 S04F-SCLCR03-D05 0.157 0.197 3.15 - 0.098 Fig. 1 S05G-SCLCL03-D06 0.197 0.236 3.54 - 0.118 Fig. 1 S05G-SCLCR03-D06 0.197 0.236 3.54 - 0.118 Fig. 1 S06H-SCLCL04-D07 0.236 0.276 3.94 - 0.138 Fig. 1 S06H-SCLCR04-D07 0.236 0.276 3.94 - 0.138 Fig. 1 S07J-SCLCL04-D08 0.276 0.315 4.33 - 0.157 Fig. 1 S07J-SCLCR04-D08 0.276 0.315 4.33 - 0.157 Fig. 1 S10H-SCLCL03-D05 0.394 0.197 3.94 0.591 0.098 Fig. 2 S10H-SCLCR03-D05 0.394 0.197 3.94 0.591 0.098 Fig. 2 HARDWARE Insert Reference Insert Screw Insert Screw Wrench S04F-SCLCL03-D05 CC_T 1.10.9_ TS16031I T6 S04F-SCLCR03-D05 CC_T 1.10.9_ TS16031I T6 S05G-SCLCL03-D06 CC_T 1.10.9_ TS16031I T6 S05G-SCLCR03-D06 CC_T 1.10.9_ TS16031I T6 S06H-SCLCL04-D07 CC_T 1.41.1_ TS20038I/HG-P T6P S06H-SCLCR04-D07 CC_T 1.41.1_ TS20038I/HG-P T6P S07J-SCLCL04-D08 CC_T 1.41.1_ TS20038I/HG-P T6P S07J-SCLCR04-D08 CC_T 1.41.1_ TS20038I/HG-P T6P S10H-SCLCL03-D05 CC_T 1.10.9_ TS16031I T6 S10H-SCLCR03-D05 CC_T 1.10.9_ TS16031I T6 =P =M =K =N =S =H 235
