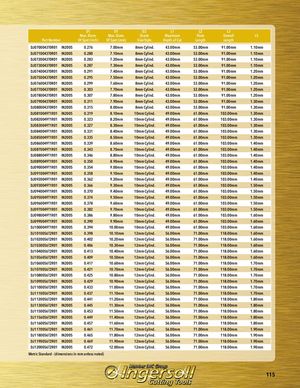

Общий каталог Ingersoll 2016 - 2017 - страница 117

D1 D1 D2 L1 L2 L3 Max. Diam. Max. Diam. Shank Maximum Flute Overall L5 Part Number Of Spot (inch) Of Spot (mm) Size/Style Depth of Cut Length Length DJ0700043T0R01 IN2005 0.276 7.00mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm DJ0710043T0R01 IN2005 0.280 7.10mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm DJ0720043T0R01 IN2005 0.283 7.20mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm DJ0730043T0R01 IN2005 0.287 7.30mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm DJ0740043T0R01 IN2005 0.291 7.40mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm DJ0750043T0R01 IN2005 0.295 7.50mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm DJ0760043T0R01 IN2005 0.299 7.60mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm DJ0770043T0R01 IN2005 0.303 7.70mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm DJ0780043T0R01 IN2005 0.307 7.80mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm DJ0790043T0R01 IN2005 0.311 7.90mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.30mm DJ0800043T0R01 IN2005 0.315 8.00mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.30mm DJ0810049T1R01 IN2005 0.319 8.10mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm DJ0820049T1R01 IN2005 0.323 8.20mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm DJ0830049T1R01 IN2005 0.327 8.30mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm DJ0840049T1R01 IN2005 0.331 8.40mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm DJ0850049T1R01 IN2005 0.335 8.50mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm DJ0860049T1R01 IN2005 0.339 8.60mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm DJ0870049T1R01 IN2005 0.343 8.70mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm DJ0880049T1R01 IN2005 0.346 8.80mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm DJ0890049T1R01 IN2005 0.350 8.90mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm DJ0900049T1R01 IN2005 0.354 9.00mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm DJ0910049T1R01 IN2005 0.358 9.10mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm DJ0920049T1R01 IN2005 0.362 9.20mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm DJ0930049T1R01 IN2005 0.366 9.30mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm DJ0940049T1R01 IN2005 0.370 9.40mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm DJ0950049T1R01 IN2005 0.374 9.50mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm DJ0960049T1R01 IN2005 0.378 9.60mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm DJ0970049T1R01 IN2005 0.382 9.70mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm DJ0980049T1R01 IN2005 0.386 9.80mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm DJ0990049T1R01 IN2005 0.390 9.90mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm DJ1000049T1R01 IN2005 0.394 10.00mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm DJ1010056T2R01 IN2005 0.398 10.10mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm DJ1020056T2R01 IN2005 0.402 10.20mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm DJ1030056T2R01 IN2005 0.406 10.30mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm DJ1040056T2R01 IN2005 0.413 10.40mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm DJ1056056T2R01 IN2005 0.409 10.50mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm DJ1060056T2R01 IN2005 0.417 10.60mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm DJ1070056T2R01 IN2005 0.421 10.70mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm DJ1080056T2R01 IN2005 0.425 10.80mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm DJ1090056T2R01 IN2005 0.429 10.90mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm DJ1100056T2R01 IN2005 0.433 11.00mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm DJ1110056T2R01 IN2005 0.437 11.10mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm DJ1120056T2R01 IN2005 0.441 11.20mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm DJ1130056T2R01 IN2005 0.445 11.30mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm DJ1150056T2R01 IN2005 0.453 11.50mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm DJ1156056T2R01 IN2005 0.449 11.40mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm DJ1160056T2R01 IN2005 0.457 11.60mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm DJ1170056T2R01 IN2005 0.461 11.70mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm DJ1180056T2R01 IN2005 0.465 11.80mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm DJ1190056T2R01 IN2005 0.469 11.90mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm DJ1200056T2R01 IN2005 0.472 12.00mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm Metric Standard - (dimensions in mm unless noted) 115
