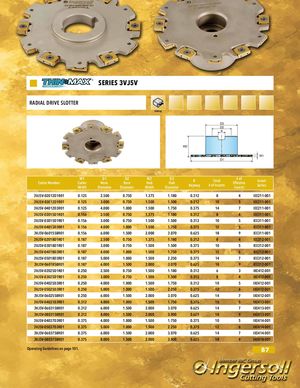

SERIES 3VJ5V RADIAL DRIVE SLOTTER Slotting D3 D2 K W2 W1 D1 Cutter Number W1CutterWidthD1 D2 W2Nom.BoreHubDiameterDiameterWidth D3HubDiameter KKeyway Total# of Inserts# ofEffectiveInsertsInsertSeries 3VJ5V-02012D1R01 0.125 2.500 0.750 1.375 1.180 0.312 8 4 IEE211-001 3VJ5V-03012D1R01 0.125 3.000 0.750 1.500 1.500 0.312 10 5 IEE211-001 3VJ5V-04012D3R01 0.125 4.000 1.000 1.500 1.750 0.375 14 D3 7 IEE211-001 3VJ5V-02015D1R01 0.156 2.500 0.750 1.375 1.180 0.312 8 D2K 4 IEE311-001 3VJ5V-03015D1R01 0.156 3.000 0.750 1.500 1.500 W2 0.312 10 5 IEE3W111-001 3VJ5V-04015D3R01 0.156 4.000 1.000 1.500 1.750 0.375 12 D1 6 IEE311-001 3VJ5V-0601558R01 0.156 6.000 1.500 2.000 3.070 0.625 18 9 IEE311-001 3VJ5V-02018D1R01 0.187 2.500 0.750 1.375 1.180 0.312 8 4 IEE312-001 3VJ5V-03018D1R01 0.187 3.000 0.750 1.500 1.500 0.375 10 5 IEE312-001 3VJ5V-04018D3R01 0.187 4.000 1.000 1.500 1.750 0.375 12 6 IEE312-001 3VJ5V-05018D3R01 0.187 5.000 1.000 1.500 2.250 0.375 14 7 IEE312-001 3VJ5V-0601858R01 0.187 6.000 1.500 2.000 3.070 0.625 18 9 IEE312-001 3VJ5V-02025D1R01 0.250 2.500 0.750 1.500 1.180 0.312 6 3 IXE412-001 3VJ5V-03025D1R01 0.250 3.000 0.750 1.500 1.500 0.312 8 4 IXE412-001 3VJ5V-04025D3R01 0.250 4.000 1.000 1.500 1.750 0.312 10 5 IXE412-001 3VJ5V-05025D3R01 0.250 5.000 1.000 1.500 2.250 0.375 12 6 IXE412-001 3VJ5V-0602558R01 0.250 6.000 1.500 2.000 3.070 0.625 14 7 IXE412-001 3VJ5V-04031D3R01 0.312 4.000 1.000 1.500 1.750 0.375 10 5 IXE413-001 3VJ5V-0603158R01 0.312 6.000 1.500 2.000 3.070 0.625 14 7 IXE413-001 3VJ5V-0803158R01 0.312 8.000 1.500 2.000 3.800 0.625 18 9 IXE413-001 3VJ5V-04037D3R01 0.375 4.000 1.000 1.500 1.750 0.375 10 5 IXE414-001 3VJ5V-05037D3R01 0.375 5.000 1.000 1.500 2.250 0.375 12 6 IXE414-001 3VJ5V-0603758R01 0.375 6.000 1.500 2.000 3.070 0.625 14 7 IXE414-001 3VJ5V-0803758R01 0.375 8.000 1.500 2.000 3.800 0.625 18 9 IXE414-001 Operating Guidelines on page 101. 87
