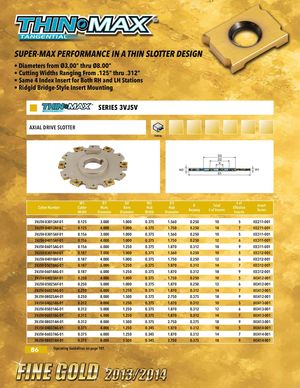

D3 D2 K W2 W1 SERIES 3VJ5V D1 AXIAL DRIVE SLOTTER Slotting D3 D2 K W2 W1 D1 Cutter Number W1CutterWidthD1 D2 W2Nom.BoreHubDiameterDiameterWidth D3HubDiameter KKeyway Total# of Inserts# ofEffectiveInsertsInsertSeries 3VJ5V-03012AF-01 0.125 3.000 1.000 0.375 1.560 0.250 10 5 IEE211-001 3VJ5V-04012AF-01 0.125 4.000 1.000 0.375 1.750 0.250 14 7 IEE211-001 3VJ5V-03015AF-01 0.156 3.000 1.000 0.375 1.560 0.250 10 5 IEE311-001 3VJ5V-04015AF-01 0.156 4.000 1.000 0.375 1.750 0.250 12 6 IEE311-001 3VJ5V-06015AG-01 0.156 6.000 1.250 0.375 1.870 0.312 18 9 IEE311-001 3VJ5V-03018AF-01 0.187 3.000 1.000 0.375 1.560 0.250 10 5 IEE312-001 3VJ5V-04018AF-01 0.187 4.000 1.000 0.375 1.750 0.250 12 6 IEE312-001 3VJ5V-05018AG-01 0.187 5.000 1.250 0.375 1.870 0.312 14 7 IEE312-001 3VJ5V-06018AG-01 0.187 6.000 1.250 0.375 1.870 0.312 18 9 IEE312-001 3VJ5V-04025AF-01 0.250 4.000 1.000 0.375 1.750 0.250 10 5 IXE412-001 3VJ5V-05025AF-01 0.250 5.000 1.000 0.375 1.870 0.250 12 6 IXE412-001 3VJ5V-06025AG-01 0.250 6.000 1.250 0.375 1.870 0.312 14 7 IXE412-001 3VJ5V-08025AH-01 0.250 8.000 1.500 0.375 2.750 0.375 18 9 IXE412-001 3VJ5V-04031AG-01 0.312 4.000 1.250 0.375 1.870 0.312 10 5 IXE413-001 3VJ5V-05031AG-01 0.312 5.000 1.250 0.375 1.870 0.312 12 6 IXE413-001 3VJ5V-06031AG-01 0.312 6.000 1.250 0.375 1.870 0.312 14 7 IXE413-001 3VJ5V-08031AH-01 0.312 8.000 1.500 0.375 2.750 0.375 18 9 IXE413-001 3VJ5V-04037AG-01 0.375 4.000 1.250 0.345 1.870 0.312 10 5 IXE414-001 3VJ5V-06037AG-01 0.375 6.000 1.250 0.345 1.870 0.312 14 7 IXE414-001 3VJ5V-08037AH-01 0.375 8.000 1.500 0.345 2.750 0.375 18 9 IXE414-001 86 Operating Guidelines on page 101.
