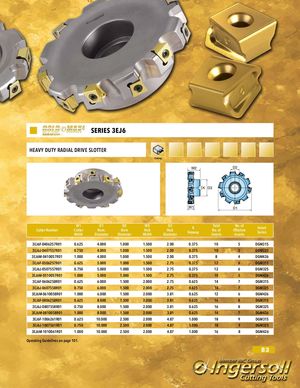

SERIES 3EJ6 HEAVY DUTY RADIAL DRIVE SLOTTER Slotting W2 D2 K D3 W1 D1 Cutter Number W1CutterWidth D1 D2 W2Nom.BoreHubDiameterDiameterWidth D3HubDiameter KKeyway TotalNo. ofInsertsNo. ofEffectiveInsertsInsertSeries 3EJ6F-0406257R01 0.625 4.000 1.000 1.500 2.00 0.375 10 5 DGM315 3EJ6J-0407557R01 0.750 4.000 1.000 1.500 2.00 0.375 10 5 DGM325 3EJ6M-0410057R01 1.000 4.000 1.000 1.500 2.00 0.375 8 4 DGM426 3EJ6F-0506257R01 0.625 5.000 1.000 1.500 2.75 0.375 12 6 DGM315 3EJ6J-0507557R01 0.750 5.000 1.000 1.500 2.75 0.375 12 6 DGM325 3EJ6M-0510057R01 1.000 5.000 1.000 1.500 2.75 0.375 10 5 DGM426 3EJ6F-0606258R01 0.625 6.000 1.500 2.000 2.75 0.625 14 7 DGM315 3EJ6J-0607558R01 0.750 6.000 1.500 2.000 2.75 0.625 14 7 DGM325 3EJ6M-0610058R01 1.000 6.000 1.500 2.000 3.81 0.625 12 6 DGM426 3EJ6F-0806258R01 0.625 8.000 1.500 2.000 3.81 0.625 16 8 DGM315 3EJ6J-0807558R01 0.750 8.000 1.500 2.000 3.81 0.625 16 8 DGM325 3EJ6M-0810058R01 1.000 8.000 1.500 2.000 3.81 0.625 14 7 DGM426 3EJ6F-1006261R01 0.625 10.000 2.500 2.000 4.87 1.000 18 9 DGM315 3EJ6J-1007561R01 0.750 10.000 2.500 2.000 4.87 1.000 18 9 DGM325 3EJ6M-1010061R01 1.000 10.000 2.500 2.000 4.87 1.000 16 8 DGM426 Operating Guidelines on page 101. 83
