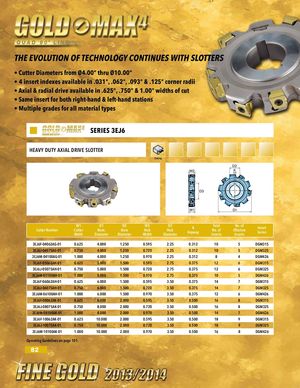

SERIES 3EJ6 HEAVY DUTY AXIAL DRIVE SLOTTER Slotting D2 W2 K D3 W1 D1 Cutter Number W1CutterWidth D1 D2 W2Nom.BoreHubDiameterDiameterWidth D3HubDiameter KKeyway TotalNo. ofInsertsNo. ofEffectiveInsertsInsertSeries 3EJ6F-04062AG-01 0.625 4.000 1.250 0.595 2.25 0.312 10 5 DGM315 3EJ6J-04075AG-01 0.750 4.000 1.250 0.720 2.25 0.312 10 5 DGM325 3EJ6M-04100AG-01 1.000 4.000 1.250 0.970 2.25 0.312 8 4 DGM426 3EJ6F-05062AH-01 0.625 5.000 1.500 0.595 2.75 0.375 12 6 DGM315 3EJ6J-05075AH-01 0.750 5.000 1.500 0.720 2.75 0.375 12 6 DGM325 3EJ6M-05100AH-01 1.000 5.000 1.500 0.970 2.75 0.375 10 5 DGM426 3EJ6F-06062AH-01 0.625 6.000 1.500 0.595 3.50 0.375 14 7 DGM315 3EJ6J-06075AH-01 0.750 6.000 1.500 0.720 3.50 0.375 14 7 DGM325 3EJ6M-06100AH-01 1.000 6.000 1.500 0.970 3.50 0.375 12 6 DGM426 3EJ6F-08062AK-01 0.625 8.000 2.000 0.595 3.50 0.500 16 8 DGM315 3EJ6J-08075AK-01 0.750 8.000 2.000 0.720 3.50 0.500 16 8 DGM325 3EJ6M-08100AK-01 1.000 8.000 2.000 0.970 3.50 0.500 14 7 DGM426 3EJ6F-10062AK-01 0.625 10.000 2.000 0.595 3.50 0.500 18 9 DGM315 3EJ6J-10075AK-01 0.750 10.000 2.000 0.720 3.50 0.500 18 9 DGM325 3EJ6M-10100AK-01 1.000 10.000 2.000 0.970 3.50 0.500 16 8 DGM426 Operating Guidelines on page 101. 82
