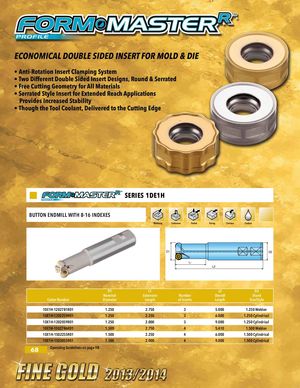

SERIES 1DE1H BUTTON ENDMILL WITH 8-16 INDEXES Ramping Corkscrew Pocket Facing Contour Coolant D1 D2 L1 L2 D1 L1 ØD L2 D2 Ød Nominal Extension Number Overall Shank Cutter Number Diameter Length ap of InsLe1 rts Length Size/Style 1DE1H-1202781R01 1.250 2.750 3 L 5.000 1.250 Weldon 1DE1H-12022S9R01 1.250 2.250 3 6.000 1.250 Cylindrical 1DE1H-12020S9R01 1.250 2.000 3 9.000 1.250 Cylindrical D2 1DE1H-1502786R01 1.500 2.750 4 5.410 1.500 Weldon K 1DE1H-15022S5R01 1.500 2.250 4 6.000 1.500 Cylindrical 1DE1H-15020S5R01 1.500 2.000 L1 4 9.000 1.500 Cylindrical 68 Operating Guidelines on page 98. D1 T1 D1
