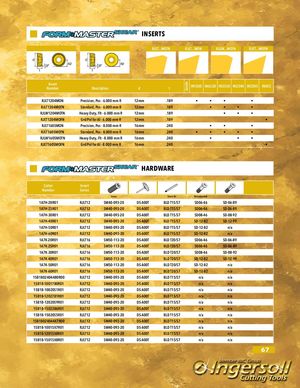

Grade INSERTS RJLT...MOTN RJLT...MON RJLW...MOTN RJET...MOFN d d 9º ap 9º ap t t Insert Number Description d t IN1030 IN6530 IN2530 IN2540 IN2505 IN05S RJLT1204MON Precision, Pos - 6.000 mm R 12mm .189 • • • • RJLT1204MOTN Standard, Pos - 6.000 mm R 12mm .189 • • • • RJLW1204MOTN Heavy Duty, Flt - 6.000 mm R 12mm .189 • • • RJET1204MOFN Grd/Pol for Al - 6.000 mm R 12mm .189 • RJLT1605MON Precision, Pos - 8.000 mm R 16mm .240 • • • RJLT1605MOTN Standard, Pos - 8.000 mm R 16mm .240 • • • • • RJLW1605MOTN Heavy Duty, Flt - 8.000 mm R 16mm .240 • • • RJET1605MOFN Grd/Pol for Al - 8.000 mm R 16mm .240 • HARDWARE Cutter Insert Number Series Screw Driver Bit Retention Bolt 1A7H-20R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 SD06-46 SD-06-89 1A7H-25R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 SD06-46 SD-06-89 1A7H-30R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 SD08-46 SD-08-92 1A7H-40R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 SD-12-82 SD-12-99 1A7H-50R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 SD-12-82 n/a 1A7H-60R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 SD-12-82 n/a 1A7K-20R01 RJLT16 SM50-113-20 DS-A00T BLD T20/S7 SD06-46 SD-06-89 1A7K-25R01 RJLT16 SM50-113-20 DS-A00T BLD T20/S7 SD06-46 SD-06-89 1A7K-30R01 RJLT16 SM50-113-20 DS-A00T BLD T20/S7 SD08-46 SD-08-92 1A7K-40R01 RJLT16 SM50-113-20 DS-A00T BLD T20/S7 SD-12-82 SD-12-99 1A7K-50R01 RJLT16 SM50-113-20 DS-A00T BLD T20/S7 SD-12-82 n/a 1A7K-60R01 RJLT16 SM50-113-20 DS-A00T BLD T20/S7 SD-12-82 n/a 15B1B02404480R00 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-1001780R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-10020S1R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-1202781R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-12020S9R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-1502386R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-15020S5R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B024044X7R00 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-10015X7R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-12015X8R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 15B1B-15015X8R01 RJLT12 SM40-093-20 DS-A00T BLD T15/S7 n/a n/a 67
