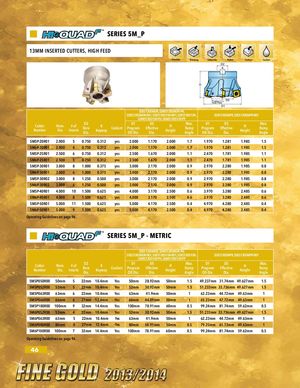

Общий каталог Ingersoll 2013 - 2014 - страница 46

SERIES 5M_P 5M6P-30R01 13MM INSERTED CUTTERS, HIGH FEED 13mm Facemill Shoulder Ramping Corkscrew Pocket Contour Coolant D2 K H H PAoxisaitl ivReake D5 D1 SDES1305MDR, SDMS1305MDR-PH, SDES1305MDR-001, SDES130515N-001, SDES130515N , SDES1305MPR, SDES1305MPR-001 SDMS130515R-PH, SDMS130512R-PP CutterNumberNom.Dia. # ofInsertsD2BoreDia.KKeywayCoolant D1ProgramOD Dia.D5EffectiveDia.HHeight Max.RampAngle D1 D5ProgramEffectiveOD Dia.Dia.HHeight15MM1aPx.-1505386R0113mRammpEndmillAngle 5M5P-20R01 2.000 5 0.750 0.312 yes 2.000 1.170 2.000 1.7 1.970 1.281 1.985 1.5 L3 5M6P-20R01 2.000 4 0.750 0.312 yes 2.000 1.170 2.000 1.7 1.970 1.281 1.985 L12.5 5M5P-25R01 2.500 6 0.750 0.312 yes 2.500 1.670 2.000 1.1 2.470 1.781 1.985 1.1 D1 D5 5M6P-25R01 2.500 5 0.750 0.312 yes 2.500 1.670 2.000 1.1 2.470 1.781 1.985 1.1 5M5P-30R01 3.000 8 1.000 0.375 yes 3.000 2.170 2.000 0.9 2.970 2.280 1.985 0.8 5M6P-30R01 3.000 6 1.000 0.375 yes 3.000 2.170 2.000 0.9 2.970 2.280 1.985 0.8 L2 5M5P-30R02 3.000 8 1.250 0.500 yes 3.000 2.170 2.000 0.9 2.970 2.280 1.985 0.8 T1 5M6P-30R02 3.000 6 1.250 0.500 yes 3.000 2.170 2.000 0.9 2.970 2.280 D11.9D855 0.8 5M5P-40R01 4.000 10 1.500 0.625 yes 4.000 3.170 2.500 0.6 3.970 3.280 2.485 0.6 5M6P-40R01 4.000 8 1.500 0.625 yes 4.000 3.170 2.500 0.6 3.970 3.280 2.485 0.6 5M5P-50R01 5.000 11 1.500 0.625 yes 5.000 4.170 2.500 0.4 4.970 4.280 2.485 0.4 5M6P-50R01 5.000 9 1.500 0.625 yes 5.000 4.170 2.500 0.4 4.970 4.280 2.485 0.4L2 T1 Operating Guidelines on page 96. D1 D5 SERIES 5M_P - METRIC SDES1305MDR, SDMS1305MDR-PH, SDES1305MDR-001, SDES130515N-001, SDES130515N , SDES1305MPR, SDES1305MPR-001 SDMS130515R-PH, SDMS130512R-PP CutterNumberNom.Dia. # ofInsertsD2BoreDia.KKeywayCoolant D1ProgramOD Dia.D5EffectiveDia.HHeight Max.RampAngle D1 D5ProgramEffectiveOD Dia.Dia.HHeightMax.RampAngle 5M5P050R00 50mm 5 22mm 10.4mm Yes 50mm 28.92mm 50mm 1.5 49.237mm 31.74mm 49.627mm 1.5 5M5P052R00 52mm 5 22mm 10.4mm Yes 52mm 30.92mm 50mm 1.5 51.233mm 33.736mm 49.627mm 1.5 5M5P063R00 63mm 6 22mm 10.4mm Yes 63mm 41.9mm 50mm 1 62.23mm 44.72mm 49.63mm 1 5M5P066R00 66mm 6 27mm 12.4mm Yes 66mm 44.89mm 50mm 1 65.23mm 47.72mm 49.63mm 1 5M5P100R00 100mm 9 32mm 14.4mm Yes 100mm 78.91mm 60mm 0.5 99.24mm 81.74mm 59.62mm 0.5 5M6P052R00 52mm 4 22mm 10.4mm Yes 52mm 30.92mm 50mm 1.5 51.233mm 33.736mm 49.627mm 1.5 5M6P063R00 63mm 5 22mm 10.4mm Yes 63mm 41.9mm 50mm 1 62.23mm 44.72mm 49.63mm 1 5M6P080R00 80mm 6 27mm 12.4mm Yes 80mm 58.91mm 50mm 0.5 79.25mm 61.73mm 49.63mm 1 5M6P100R00 100mm 7 32mm 14.4mm Yes 100mm 78.91mm 60mm 0.5 99.24mm 81.74mm 59.62mm 0.5 Operating Guidelines on page 96. 46
