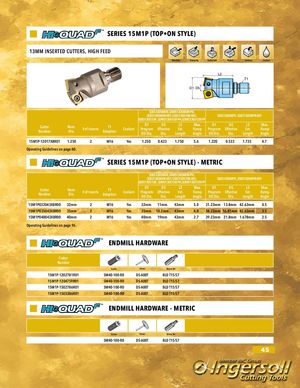

Общий каталог Ingersoll 2013 - 2014 - страница 45

L2 D1 D5 D2 SERIES 15M1P (TOP•ON STYLE) L2 T1 13MM INSERTED CUTTERS, HIGH FEED D1 D5 Shoulder Ramping Corkscrew Pocket Contour Coolant L2 T1 D1 D5 SDES1305MDR, SDMS1305MDR-PH, SDES1305MDR-001, SDES130515N-001, SDES1305MPR , SDES1305MPR-001 SDES130515N , SDMS130515R-PH, SDMS130512R-PP CutterNumber Nom.Dia. # of Inserts T1Adaption D1 D5 L2CoolantProgramEffectiveExt.OD Dia.Dia.LengthMax.D1D5L2RampProgramEffectiveExt.AngleOD Dia.Dia.LengthMax.RampAngle 15M1P-12017X8R01 1.250 2 M16 Yes 1.250 0.423 1.750 5.6 1.220 0.533 1.735 4.7 Operating Guidelines on page 60. SERIES 15M1P (TOP•ON STYLE) - METRIC SDES1305MDR, SDMS1305MDR-PH, SDES1305MDR-001, SDES130515N-001, SDES1305MPR , SDES1305MPR-001 SDES130515N , SDMS130515R-PH, SDMS130512R-PP CutterNumber Nom.Dia. # of Inserts T1Adaption Coolant D1 D5 L2ProgramEffectiveExt.OD Dia.Dia.LengthMax.D1D5 L2RampProgramEffectiveExt.AngleOD Dia.Dia.LengthMax.RampAngle 15M1P032043X8R00 32mm 2 M16 Yes 32mm 11mm 43mm 5.0 31.23mm 13.8mm 42.63mm 4.5 15M1P035043X8R00 35mm 2 M16 Yes 35mm 14.2mm 43mm 4.0 34.23mm 16.81mm 42.63mm 3.5 15M1P040043X8R00 40mm 2 M16 Yes 40mm 19mm 43mm 2.7 39.23mm 21.8mm 1.678mm 2.5 Operating Guidelines on page 96. ENDMILL HARDWARE Cutter Number Screw Driver Driver Bit 15M1P-1202781R01 SM40-100-R0 DS-A00T BLD T15/S7 15M1P-12047S9R01 SM40-100-R0 DS-A00T BLD T15/S7 15M1P-1502786R01 SM40-100-R0 DS-A00T BLD T15/S7 15M1P-1505386R01 SM40-100-R0 DS-A00T BLD T15/S7 ENDMILL HARDWARE - METRIC Screw Driver Driver Bit SM40-100-R0 DS-A00T BLD T15/S7 45
