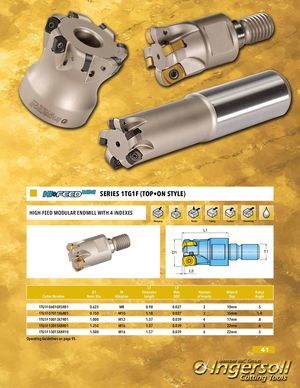

SERIES 1TG1F (TOP•ON STYLE) HIGH FEED MODULAR ENDMILL WITH 4 INDEXES Ramping Pocket Facing Contour Channeling L1 D1 T1 L3 L1 L3 D1 M Extension Max. Number Wrench Ramp Cutter Number Nom. Dia. Adaption Length DOC of Inserts Size Angle 1TG1F-06010X5R01 0.625 M8 0.98 0.027 2 10mm .5 1TG1F-07011X6R01 0.750 M10 1.18 0.027 3 15mm 1.4 1TG1F-10013X7R01 1.000 M12 1.37 0.039 4 17mm .8 1TG1F-12015X8R01 1.250 M16 1.57 0.039 5 22mm .6 1TG1F-15015X8R10 1.500 M16 1.57 0.039 6 22mm .5 Operating Guidelines on page 95. 41
