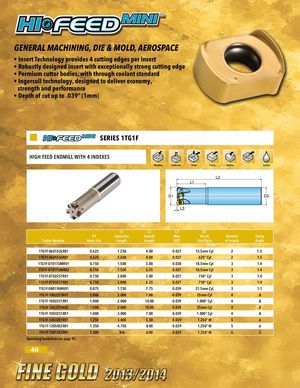

SERIES 1TG1F HIGH FEED ENDMILL WITH 4 INDEXES Ramping Corkscrew Pocket Facing Contour Coolant L2 L1 D1 D2 L3 L1 L2 L3 D2 D1 Extension Overall Max. Shank Number Ramp Cutter Number Nom. Dia. Length Length DOC Size/Style of Inserts Angle 1TG1F-06015ULR01 0.625 1.250 4.00 0.027 15.5mm Cyl 2 1.5 1TG1F-06015S6R01 0.625 1.260 4.00 0.027 .625" Cyl 2 1.5 1TG1F-07017UMR01 0.750 1.500 5.00 0.030 18.5mm Cyl 3 1.4 1TG1F-07017UMR02 0.750 1.500 6.25 0.027 18.5mm Cyl 3 1.4 1TG1F-07022S7R01 0.750 2.000 5.00 0.027 .750" Cyl 3 1.4 1TG1F-07032S7R01 0.750 3.000 6.25 0.027 .750" Cyl 3 1.4 1TG1F-08019UNR01 0.875 1.750 7.75 0.039 21.5mm Cyl 3 1.1 1TG1F-10022T5R01 1.000 2.000 7.00 0.039 25mm Cyl 4 .8 1TG1F-10022S1R01 1.000 2.000 10.00 0.039 1.000" Cyl 4 .8 1TG1F-10022T5R02 1.000 2.000 10.00 0.039 25mm Cyl 4 .8 1TG1F-10032S1R01 1.000 3.000 7.00 0.039 1.000" Cyl 4 .8 1TG1F-1203281R01 1.250 3.000 5.50 0.039 1.250" W 5 .6 1TG1F-12050E2R01 1.250 4.750 8.00 0.039 1.250" W 5 .6 1TG1F-15015E2R01 1.500 N/A 6.00 0.039 1.250" W 6 .5 Operating Guidelines on page 95. 40
