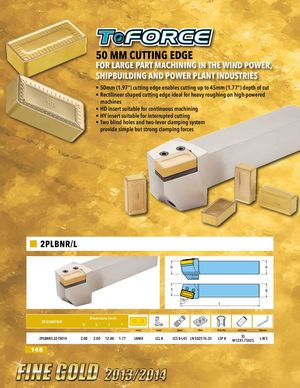

50 MM CUTTING EDGE FOR LARGE PART MACHINING IN THE WIND POWER, SHIPBUILDING AND POWER PLANT INDUSTRIES • 50mm (1.97") cutting edge enables cutting up to 45mm (1.77") depth of cut • Rectilinear shaped cutting edge ideal for heavy roughing on high-powered machines • HD insert suitable for continuous machining • HY insert suitable for interrupted cutting • Two blind holes and two-lever clamping system provide simple but strong clamping forces 2PLBNR/L h h f b 75° l Dimensions (inch) HARDWADREESIGNATION h b l f Insert Lever Screw Shim Shim Pin Set Screw Wrench 2PLBNR/L 32-T5014 2.00 2.00 12.00 1.77 LNMX LCL 8 LCS 8-L43 LN 5025-T6.35 LSP 8 SSM12X1.75X25 L-W 5 148
