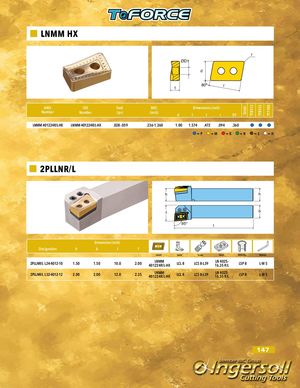

Grade TT8115 TT8125 TT7100 LNMM HX r ØD1 d t 80° l ANSI ISO feed DOC Dimensions (inch) Number Number (ipr) (inch) d l t r D1 LNMM 401224R/L-HX LNMM 401224R/L-HX .028-.059 .236-1.260 1.00 1.574 .472 .094 .360 =P =M =K =N =S =H 2PLLNR/L h h f b 95° l Dimension (inch) Designation h b l f Insert Lever Screw Shim Shim Pin Wrench 2PLLNR/L L24-4012-10 1.50 1.50 10.0 2.00 LNMM401224R/L-HX LCL 8 LCS 8-L39 LN 4025-T6.35 R/LLSP 8 L-W 5 2PLLNR/L L32-4012-12 2.00 2.00 12.0 2.35 LNMM401224R/L-HX LCL 8 LCS 8-L39 LN 4025-T6.35 R/LLSP 8 L-W 5 147
