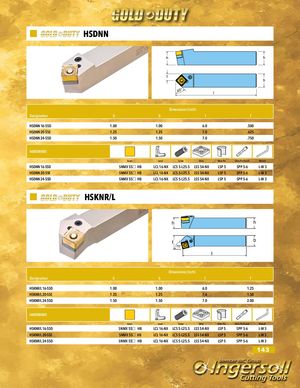

HSDNN h h f b 45° l Dimensions (inch) Designation h b l f HSDNN 16-55D 1.00 1.00 6.0 .500 HSDNN 20-55E 1.25 1.25 7.0 .625 HSDNN 24-55D 1.50 1.50 7.0 .750 HARDWARE Insert Lever Screw Shim Shim Pin Shim Pin Punch Wrench HSDNN 16-55D SNMX 55 HB LCL 16-NX LCS 5-L25.5 LSS 54-NX LSP 5 SPP 5-6 L-W 3 HSDNN 20-55E SNMX 55 HB LCL 16-NX LCS 5-L25.5 LSS 54-NX LSP 5 SPP 5-6 L-W 3 HSDNN 24-55D SNMX 55 HB LCL 16-NX LCS 5-L25.5 LSS 54-NX LSP 5 SPP 5-6 L-W 3 HSKNR/L h h f b 75° l l Dimensions (inch) Designation h b l f HSKNR/L 16-55D 1.00 1.00 6.0 1.25 HSKNR/L 20-55E 1.25 1.25 7.0 1.50 HSKNR/L 24-55D 1.50 1.50 7.0 2.00 HARDWARE Insert Lever Screw Shim Shim Pin Shim Pin Punch Wrench HSKNR/L 16-55D SNMX 55 HB LCL 16-NX LCS 5-L25.5 LSS 54-NX LSP 5 SPP 5-6 L-W 3 HSKNR/L 20-55E SNMX 55 HB LCL 16-NX LCS 5-L25.5 LSS 54-NX LSP 5 SPP 5-6 L-W 3 HSKNR/L 24-55D SNMX 55 HB LCL 16-NX LCS 5-L25.5 LSS 54-NX LSP 5 SPP 5-6 L-W 3 143 hf 95 ° hb
