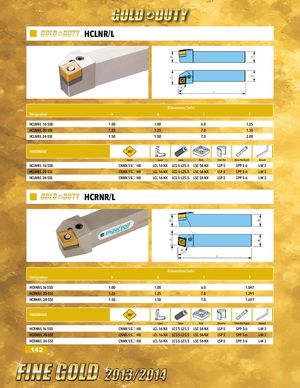

hfhf 95° hb hb HCLNR/L l Dimensions (inch) Designation h b l f HCLNR/L 16-55D 1.00 1.00 6.0 1.25 HCLNR/L 20-55E 1.25 1.25 7.0 1.50 HCLNR/L 24-55E 1.50 1.50 7.0 2.00 HARDWARE Insert Lever Screw Shim Shim Pin Shim Pin Punch Wrench HCLNR/L 16-55D CNMX 55 HB LCL 16-NX LCS 5-L25.5 LSC 54-NX LSP 5 SPP 5-6 L-W 3 HCLNR/L 20-55E CNMX 55 HB LCL 16-NX LCS 5-L25.5 LSC 54-NX LSP 5 SPP 5-6 L-W 3 HCLNR/L 24-55E CNMX 55 HB LCL 16-NX LCS 5-L25.5 LSC 54-NX LSP 5 SPP 5-6 L-W 3 HCRNR/L 75° l Dimensions (inch) Designation h b l f HCRNR/L 16-55D 1.00 1.00 6.0 1.047 HCRNR/L 20-55E 1.25 1.25 7.0 1.291 HCRNR/L 24-55E 1.50 1.50 7.0 1.697 HARDWARE Insert Lever Screw Shim Shim Pin Shim Pin Punch Wrench HCRNR/L 16-55D CNMX 55 HB LCL 16-NX LCS 5-L25.5 LSC 54-NX LSP 5 SPP 5-6 L-W 3 HCRNR/L 20-55E CNMX 55 HB LCL 16-NX LCS 5-L25.5 LSC 54-NX LSP 5 SPP 5-6 L-W 3 HCRNR/L 24-55E CNMX 55 HB LCL 16-NX LCS 5-L25.5 LSC 54-NX LSP 5 SPP 5-6 L-W 3 142
