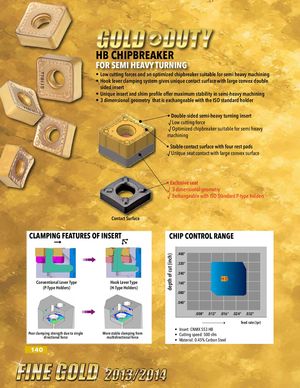

HB CHIPBREAKER FOR SEMI HEAVY TURNING • Low cutting forces and an optimized chipbreaker suitable for semi heavy machining • Hook lever clamping system gives unique contact surface with large convex double sided insert • Unique insert and shim profile offer maximum stability in semi-heavy machining • 3 dimensional geometry that is exchangeable with the ISO standard holder • Double-sided semi-heavy turning insert √ Low cutting force √ Optimized chipbreaker suitable for semi heavy machining • Stable contact surface with four rest pads √ Unique seat contact with large convex surface • Exclusive seat √ 3 dimensional geometry √ Exchangeable with ISO Standard P-type holders Contact Surface CLAMPING FEATURES OF INSERT CHIP CONTROL RANGE .400” .320” .240” HB Conventional Lever Type Hook Lever Type .160” (P-Type Holders) (H-Type Holders) .080” .040” .008" .012" .016" .024" .032" feed rate (ipr) • Insert: CNMX 553 HB Poor clamping strength due to single More stable clamping fromdirectional forcemultidirectional force•Cutting speed: 500 sfm•Material: 0.45% Carbon Steel 140 depth of cut (inch)
