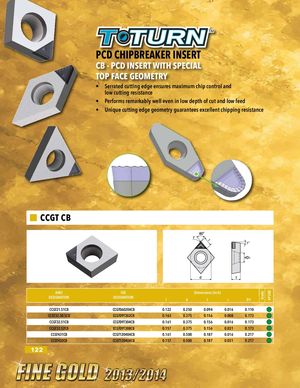

PCD CHIPBREAKER INSERT CB - PCD INSERT WITH SPECIAL TOP FACE GEOMETRY • Serrated cutting edge ensures maximum chip control and low cutting resistance • Performs remarkably well even in low depth of cut and low feed • Unique cutting edge geometry guarantees excellent chipping resistance CCGT CB ANSI ISO Dimensions (inch) DESIGNATION DESIGNATION l d t r D1 CCGT21.51CB CCGT060204CB 0.122 0.250 0.094 0.016 0.110 CCGT32.50.5CB CCGT09T302CB 0.163 0.375 0.156 0.008 0.173 CCGT32.51CB CCGT09T304CB 0.161 0.375 0.156 0.016 0.173 CCGT32.52CB CCGT09T308CB 0.157 0.375 0.156 0.031 0.173 CCGT431CB CCGT120404CB 0.161 0.500 0.187 0.016 0.217 CCGT432CB CCGT120408CB 0.157 0.500 0.187 0.031 0.217 122 Grade KP300
