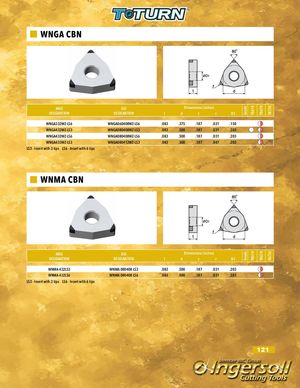

Общий каталог Ingersoll 2013 - 2014 - страница 121

GradeGrade TB610TB610 TB670TB670 TB730TB730 WNGA CBN ANSI ISO Dimensions (inches) DESIGNATION DESIGNATION l d t r D1 WNGA332WZ-LS6 WNGA060408WZ-LS6 .083 .375 .187 .031 .150 WNGA432WZ-LS3 WNGA080408WZ-LS3 .083 .500 .187 .031 .203 WNGA432WZ-LS6 WNGA080408WZ-LS6 .083 .500 .187 .031 .203 WNGA433WZ-LS3 WNGA080412WZ-LS3 .083 .500 .187 .047 .203 LS3 - Insert with 3 tips LS6 - Insert with 6 tips WNMA CBN ANSI ISO Dimensions (inches) DESIGNATION DESIGNATION l d t r D1 WNMA 432LS3 WNMA 080408 LS3 .083 .500 .187 .031 .203 WNMA 432LS6 WNMA 080408 LS6 .083 .500 .187 .031 .203 LS3 - Insert with 3 tips LS6 - Insert with 6 tips 121
