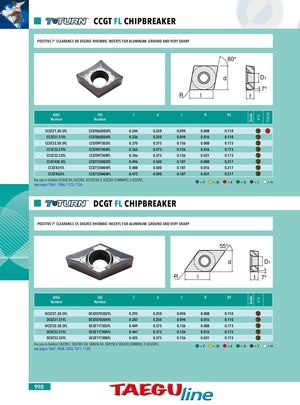

GradeGrade K10K10 TT6030 inserts for aluminum CCGT FL CHIPBREAKER POSITIVE 7° CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR ALUMINUM. GROUND AND VERY SHARP 80° d D1 7° R l t ANASNISI ISIOSO ll dd tt RR D1D1 NuNmumbebrer NuNmumbebrer CCGT21.50.5FL CCGT060202FL 0.244 0.250 0.094 0.008 0.110 CCGT21.51FL CCGT060204FL 0.236 0.250 0.094 0.016 0.110 CCGT32.50.5FL CCGT09T302FL 0.370 0.375 0.156 0.008 0.173 CCGT32.51FL CCGT09T304FL 0.362 0.375 0.156 0.016 0.173 CCGT32.52FL CCGT09T308FL 0.346 0.375 0.156 0.031 0.173 CCGT430.5FL CCGT120402FL 0.496 0.500 0.187 0.008 0.217 CCGT431FL CCGT120404FL 0.488 0.500 0.187 0.016 0.217 CCGT432FL CCGT120408FL 0.472 0.500 0.187 0.031 0.217 For use in holders SCACR-SH, SCLCR/L, SCLCR-SH, E-SCLCR/L (CARBIDE), S-SCLCR/L,see pages 1064 - 1066, 1125, 1126.=P =M =K =N =S =H DCGT FL CHIPBREAKER POSITIVE 7° CLEARANCE 55 DEGREE RHOMBIC INSERTS FOR ALUMINUM. GROUND AND VERY SHARP 55° d D1 R l t 7° ANSI ISO l d t R D1 Number Number DCGT21.50.5FL DCGT070202FL 0.295 0.250 0.094 0.008 0.110 DCGT21.51FL DCGT070204FL 0.287 0.250 0.094 0.016 0.110 DCGT32.50.5FL DCGT11T302FL 0.449 0.375 0.156 0.008 0.173 DCGT32.51FL DCGT11T304FL 0.441 0.375 0.156 0.016 0.173 DCGT32.52FL DCGT11T308FL 0.425 0.375 0.156 0.031 0.173 For use in holders SDJCR/L , SDJCR/L-SH, SDNCN-SH, SDPCN, E-SDUCR (CARBIDE), S-SDUCR/L,see pages 1067, 1068, 1070, 1071, 1128.=P=M=K=N =S =H 990
