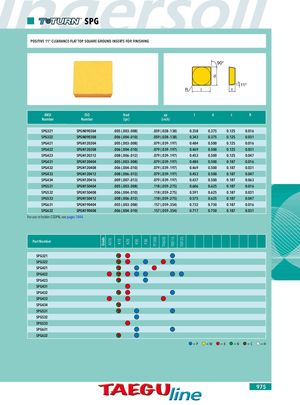

SPG POSITIVE 11° CLEARANCE FLAT TOP SQUARE GROUND INSERTS FOR FINISHING 90° d 11° R l t ANASNISI ISIOSO fefeeded apap ll dd tt RR NuNmumbebrer NuNmumbebrer (ip(irp)r) (in(icnhc)h) SPG321 SPGN090304 .005 (.003-.008) .059 (.028-.138) 0.358 0.375 0.125 0.016 SPG322 SPGN090308 .006 (.004-.010) .059 (.028-.138) 0.343 0.375 0.125 0.031 SPG421 SPGN120304 .005 (.003-.008) .079 (.039-.197) 0.484 0.500 0.125 0.016 SPG422 SPGN120308 .006 (.004-.010) .079 (.039-.197) 0.469 0.500 0.125 0.031 SPG423 SPGN120312 .008 (.006-.012) .079 (.039-.197) 0.453 0.500 0.125 0.047 SPG431 SPGN120404 .005 (.003-.008) .079 (.039-.197) 0.484 0.500 0.187 0.016 SPG432 SPGN120408 .006 (.004-.010) .079 (.039-.197) 0.469 0.500 0.187 0.031 SPG433 SPGN120412 .008 (.006-.012) .079 (.039-.197) 0.453 0.500 0.187 0.047 SPG434 SPGN120416 .009 (.007-.013) .079 (.039-.197) 0.437 0.500 0.187 0.063 SPG531 SPGN150404 .005 (.003-.008) .118 (.059-.275) 0.606 0.625 0.187 0.016 SPG532 SPGN150408 .006 (.004-.010) .118 (.059-.275) 0.591 0.625 0.187 0.031 SPG533 SPGN150412 .008 (.006-.012) .118 (.059-.275) 0.575 0.625 0.187 0.047 SPG631 SPGN190404 .005 (.003-.008) .157 (.059-.354) 0.732 0.750 0.187 0.016 SPG632 SPGN190408 .006 (.004-.010) .157 (.059-.354) 0.717 0.750 0.187 0.031 For use in holder CSDPN, see pages 1044. Part Number SPG321 SPG322 SPG421 SPG422 SPG423 SPG431 SPG432 SPG433 SPG434 SPG531 SPG532 SPG533 SPG631 SPG632 =P =M =K =N =S =H 975 Grade AS10 K10 K20 P20 P30 TT1300 TT6030 TT8115 TT8125
