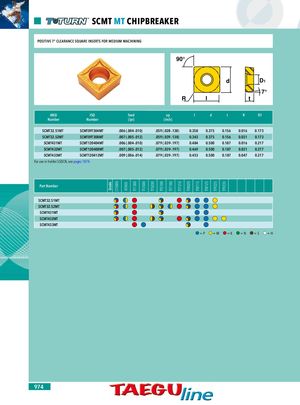

Grade CT3000 KT450 TT1300 TT3500 TT5030 TT5100 TT7100 TT7310 TT8020 TT8115 TT8125 TT9225 TT9235 SCMT MT CHIPBREAKER POSITIVE 7° CLEARANCE SQUARE INSERTS FOR MEDIUM MACHINING 90° d D1 7° R l t ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) SCMT32.51MT SCMT09T304MT .006 (.004-.010) .059 (.028-.138) 0.358 0.375 0.156 0.016 0.173 SCMT32.52MT SCMT09T308MT .007 (.005-.012) .059 (.039-.138) 0.343 0.375 0.156 0.031 0.173 SCMT431MT SCMT120404MT .006 (.004-.010) .079 (.039-.197) 0.484 0.500 0.187 0.016 0.217 SCMT432MT SCMT120408MT .007 (.005-.012) .079 (.039-.197) 0.469 0.500 0.187 0.031 0.217 SCMT433MT SCMT120412MT .009 (.006-.014) .079 (.039-.197) 0.453 0.500 0.187 0.047 0.217 For use in holder SSDCN, see pages 1074. Part Number SCMT32.51MT SCMT32.52MT SCMT431MT SCMT432MT SCMT433MT =P =M =K =N =S =H 974
