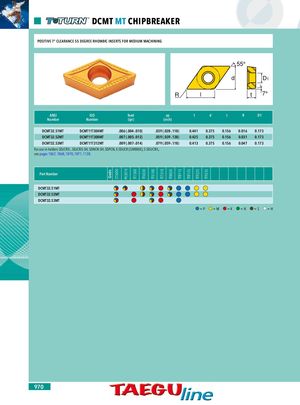

Grade CT3000 PV3010 TT1300 TT5030 TT5100 TT7310 TT8020 TT8115 TT8125 TT9225 TT9235 DCMT MT CHIPBREAKER POSITIVE 7° CLEARANCE 55 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING 55° d D1 R l t 7° ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) DCMT32.51MT DCMT11T304MT .006 (.004-.010) .039 (.028-.118) 0.441 0.375 0.156 0.016 0.173 DCMT32.52MT DCMT11T308MT .007 (.005-.012) .059 (.039-.138) 0.425 0.375 0.156 0.031 0.173 DCMT32.53MT DCMT11T312MT .009 (.007-.014) .079 (.059-.118) 0.413 0.375 0.156 0.047 0.173 For use in holders SDJCR/L , SDJCR/L-SH, SDNCN-SH, SDPCN, E-SDUCR (CARBIDE), S-SDUCR/L, see pages 1067, 1068, 1070, 1071, 1128. Part Number DCMT32.51MT DCMT32.52MT DCMT32.53MT =P =M =K =N =S =H 970
