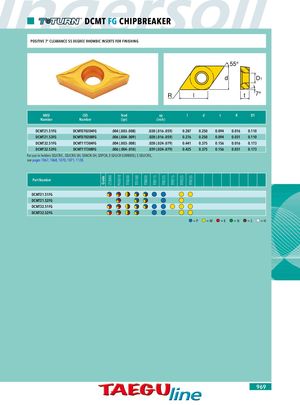

Grade CT3000 PV3010 TT5030 TT5100 TT8020 TT8115 TT8125 TT9215 TT9225 TT9235 DCMT FG CHIPBREAKER POSITIVE 7° CLEARANCE 55 DEGREE RHOMBIC INSERTS FOR FINISHING 55° d D1 R l t 7° ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) DCMT21.51FG DCMT070204FG .004 (.003-.008) .028 (.016-.059) 0.287 0.250 0.094 0.016 0.110 DCMT21.52FG DCMT070208FG .006 (.004-.009) .028 (.016-.059) 0.276 0.250 0.094 0.031 0.110 DCMT32.51FG DCMT11T304FG .004 (.003-.008) .028 (.024-.079) 0.441 0.375 0.156 0.016 0.173 DCMT32.52FG DCMT11T308FG .006 (.004-.010) .039 (.024-.079) 0.425 0.375 0.156 0.031 0.173 For use in holders SDJCR/L , SDJCR/L-SH, SDNCN-SH, SDPCN, E-SDUCR (CARBIDE), S-SDUCR/L, see pages 1067, 1068, 1070, 1071, 1128. Part Number DCMT21.51FG DCMT21.52FG DCMT32.51FG DCMT32.52FG =P =M =K =N =S =H 969
