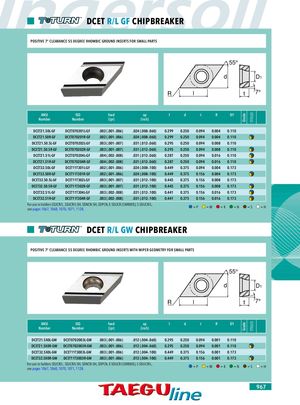

GradeGrade TT9020TT9020 DCET R/L GF CHIPBREAKER POSITIVE 7° CLEARANCE 55 DEGREE RHOMBIC GROUND INSERTS FOR SMALL PARTS 55° d D1 R l t 7° ANASNISI ISIOSO fefeeded apap ll dd tt RR D1D1 NuNmumbebrer NuNmumbebrer (ip(irp)r) (in(icnhc)h) DCET21.50L-GF DCET070201L-GF .002 (.001-.006) .024 (.008-.060) 0.299 0.250 0.094 0.004 0.110 DCET21.50R-GF DCET070201R-GF .002 (.001-.006) .024 (.008-.060) 0.299 0.250 0.094 0.004 0.110 DCET21.50.5L-GF DCET070202L-GF .003 (.001-.007) .031 (.012-.060) 0.295 0.250 0.094 0.008 0.110 DCET21.50.5R-GF DCET070202R-GF .003 (.001-.007) .031 (.012-.060) 0.295 0.250 0.094 0.008 0.110 DCET21.51L-GF DCET070204L-GF .004 (.002-.008) .031 (.012-.060) 0.287 0.250 0.094 0.016 0.110 DCET21.51R-GF DCET070204R-GF .004 (.002-.008) .031 (.012-.060) 0.287 0.250 0.094 0.016 0.110 DCET32.50L-GF DCET11T301L-GF .002 (.001-.006) .024 (.008-.100) 0.449 0.375 0.094 0.004 0.173 DCET32.50R-GF DCET11T301R-GF .002 (.001-.006) .024 (.008-.100) 0.449 0.375 0.156 0.004 0.173 DCET32.50.5L-GF DCET11T302L-GF .003 (.001-.007) .031 (.012-.100) 0.445 0.375 0.156 0.008 0.173 DCET32.50.5R-GF DCET11T302R-GF .003 (.001-.007) .031 (.012-.100) 0.445 0.375 0.156 0.008 0.173 DCET32.51L-GF DCET11T304L-GF .003 (.002-.008) .031 (.012-.100) 0.441 0.375 0.156 0.016 0.173 DCET32.51R-GF DCET11T304R-GF .003 (.002-.008) .031 (.012-.100) 0.441 0.375 0.156 0.016 0.173 For use in holders SDJCR/L , SDJCR/L-SH, SDNCN-SH, SDPCN, E-SDUCR (CARBIDE), S-SDUCR/L,see pages 1067, 1068, 1070, 1071, 1128.=P=M=K =N =S =H DCET R/L GW CHIPBREAKER POSITIVE 7° CLEARANCE 55 DEGREE RHOMBIC GROUND INSERTS WITH WIPER GEOMETRY FOR SMALL PARTS 55° d D1 R l t 7° ANASNISI ISIOSO fefeeded apap ll dd tt RR D1D1 NuNmumbebrer NuNmumbebrer (ip(irp)r) (in(icnhc)h) DCET21.5X0L-GW DCET0702003L-GW .003 (.001-.006) .012 (.004-.060) 0.295 0.250 0.094 0.001 0.110 DCET21.5X0R-GW DCET0702003R-GW .003 (.001-.006) .012 (.004-.060) 0.295 0.250 0.094 0.001 0.110 DCET32.5X0L-GW DCET11T3003L-GW .003 (.001-.006) .012 (.004-.100) 0.449 0.375 0.156 0.001 0.173 DCET32.5X0R-GW DCET11T3003R-GW .003 (.001-.006) .012 (.004-.100) 0.449 0.375 0.156 0.001 0.173 For use in holders SDJCR/L , SDJCR/L-SH, SDNCN-SH, SDPCN, E-SDUCR (CARBIDE), S-SDUCR/L,see pages 1067, 1068, 1070, 1071, 1128.=P=M=K =N =S =H 967
