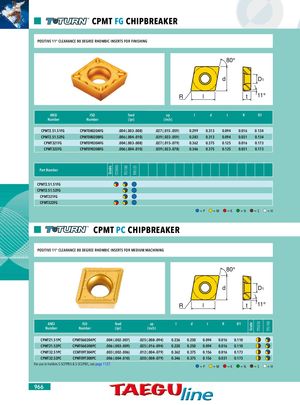

Grade CT3000 TT5100 TT8125 Grade TT5030 TT5100 CPMT FG CHIPBREAKER POSITIVE 11° CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR FINISHING 80° d D1 R l t 11° ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) CPMT2.51.51FG CPMT080204FG .004 (.003-.008) .027 (.015-.059) 0.299 0.313 0.094 0.016 0.134 CPMT2.51.52FG CPMT080208FG .006 (.004-.010) .039 (.023-.059) 0.283 0.313 0.094 0.031 0.134 CPMT321FG CPMT090304FG .004 (.003-.008) .027 (.015-.079) 0.362 0.375 0.125 0.016 0.173 CPMT322FG CPMT090308FG .006 (.004-.010) .039 (.023-.078) 0.346 0.375 0.125 0.031 0.173 Part Number CPMT2.51.51FG CPMT2.51.52FG CPMT321FG CPMT322FG =P =M =K =N =S =H CPMT PC CHIPBREAKER POSITIVE 11° CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING 80° d D1 R l t 11° ANASNISI ISIOSO fefeeded apap ll dd tt RR D1D1 NuNmumbebrer NuNmumbebrer (ip(irp)r) (in(icnhc)h) CPMT21.51PC CPMT060204PC .004 (.002-.007) .025 (.008-.094) 0.236 0.250 0.094 0.016 0.110 CPMT21.52PC CPMT060208PC .006 (.003-.009) .025 (.016-.094) 0.220 0.250 0.094 0.016 0.110 CPMT32.51PC CCMT09T304PC .003 (.002-.006) .012 (.004-.079) 0.362 0.375 0.156 0.016 0.173 CPMT32.52PC CPMT09T308PC .006 (.004-.010) .020 (.008-.079) 0.346 0.375 0.156 0.031 0.173 For use in holders S-SCFPR/L & S-SCLPR/L, see page 1127. =P =M =K =N =S =H 966
