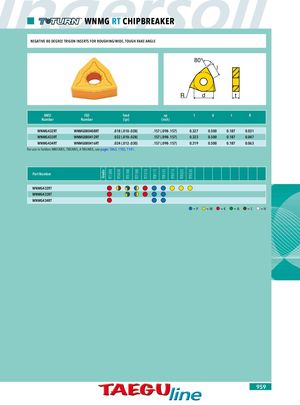

Grade TT1300 TT5030 TT5100 TT7100 TT7310 TT8115 TT8125 TT9215 TT9225 TT9235 WNMG RT CHIPBREAKER NEGATIVE 80 DEGREE TRIGON INSERTS FOR ROUGHING/WIDE, TOUGH RAKE ANGLE 80° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) WNMG432RT WNMG080408RT .018 (.010-.028) .157 (.098-.157) 0.327 0.500 0.187 0.031 WNMG433RT WNMG080412RT .022 (.010-.028) .157 (.098-.157) 0.323 0.500 0.187 0.047 WNMG434RT WNMG080416RT .024 (.012-.030) .157 (.098-.157) 0.319 0.500 0.187 0.063 For use in holders MWLNR/L, TWLNR/L, A-TWLNR/L, see pages 1063, 1102, 1141. Part Number WNMG432RT WNMG433RT WNMG434RT =P =M =K =N =S =H 959
