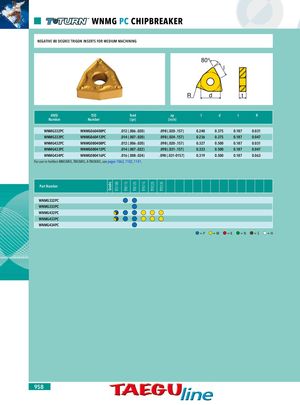

Grade TT5100 TT8115 TT8125 TT9215 TT9225 TT9235 WNMG PC CHIPBREAKER NEGATIVE 80 DEGREE TRIGON INSERTS FOR MEDIUM MACHINING 80° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) WNMG332PC WNMG060408PC .012 (.006-.020) .098 (.020-.157) 0.240 0.375 0.187 0.031 WNMG333PC WNMG060412PC .014 (.007-.020) .098 (.024-.157) 0.236 0.375 0.187 0.047 WNMG432PC WNMG080408PC .012 (.006-.020) .098 (.020-.157) 0.327 0.500 0.187 0.031 WNMG433PC WNMG080412PC .014 (.007-.022) .098 (.031-.157) 0.323 0.500 0.187 0.047 WNMG434PC WNMG080416PC .016 (.008-.024) .098 (.031-0157) 0.319 0.500 0.187 0.063 For use in holders MWLNR/L, TWLNR/L, A-TWLNR/L, see pages 1063, 1102, 1141. Part Number WNMG332PC WNMG333PC WNMG432PC WNMG433PC WNMG434PC =P =M =K =N =S =H 958
