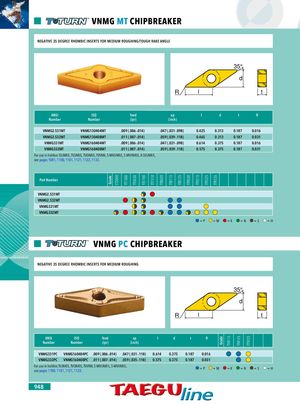

Grade CT3000 TT1300 TT5030 TT5100 TT7310 TT8020 TT8115 TT8125 TT9030 TT9215 TT9225 TT9235 Grade TT8115 TT8125 TT9225 VNMG MT CHIPBREAKER NEGATIVE 35 DEGREE RHOMBIC INSERTS FOR MEDIUM ROUGHING/TOUGH RAKE ANGLE 35° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) VNMG2.531MT VNMG130404MT .009 (.006-.014) .047 (.031-.098) 0.425 0.313 0.187 0.016 VNMG2.532MT VNMG130408MT .011 (.007-.014) .059 (.039-.118) 0.465 0.313 0.187 0.031 VNMG331MT VNMG160404MT .009 (.006-.014) .047 (.031-.098) 0.614 0.375 0.187 0.016 VNMG332MT VNMG160408MT .011 (.007-.014) .059 (.039-.118) 0.575 0.375 0.187 0.031 For use in holders SVJNR/L, TVJNR/L, TVQNR/L, TVVNN, S-MVUNR/L, S-MVXNR/L, A-SVUNR/L, see pages 1081, 1100, 1101, 1121, 1122, 1133. Part Number VNMG2.531MT VNMG2.532MT VNMG331MT VNMG332MT =P =M =K =N =S =H VNMG PC CHIPBREAKER NEGATIVE 35 DEGREE RHOMBIC INSERTS FOR MEDIUM ROUGHING 35° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) VNMG331PC VNMG160404PC .009 (.006-.014) .047 (.031-.118) 0.614 0.375 0.187 0.016 VNMG332PC VNMG160408PC .011 (.007-.014) .059 (.035-.118) 0.575 0.375 0.187 0.031 For use in holders TVJNR/L, TVQNR/L, TVVNN, S-MVUNR/L, S-MVXNR/L,see pages 1100, 1101, 1121, 1122. =P =M =K =N =S =H 948
