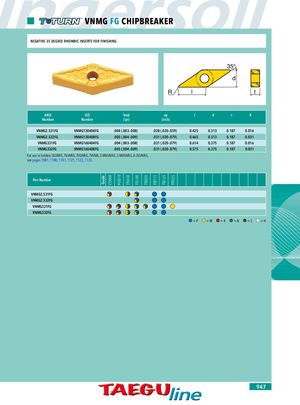

Grade CT3000 PV3010 TT5030 TT5100 TT8020 TT8115 TT8125 TT9225 VNMG FG CHIPBREAKER NEGATIVE 35 DEGREE RHOMBIC INSERTS FOR FINISHING 35° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) VNMG2.531FG VNMG130404FG .004 (.003-.008) .028 (.020-.059) 0.425 0.313 0.187 0.016 VNMG2.532FG VNMG130408FG .005 (.004-.009) .031 (.020-.079) 0.465 0.313 0.187 0.031 VNMG331FG VNMG160404FG .004 (.003-.008) .031 (.020-.079) 0.614 0.375 0.187 0.016 VNMG332FG VNMG160408FG .005 (.004-.009) .031 (.020-.079) 0.575 0.375 0.187 0.031 For use in holders SVJNR/L, TVJNR/L, TVQNR/L, TVVNN, S-MVUNR/L, S-MVXNR/L, A-SVUNR/L, see pages 1081, 1100, 1101, 1121, 1122, 1133. Part Number VNMG2.531FG VNMG2.532FG VNMG331FG VNMG332FG =P =M =K =N =S =H 947
