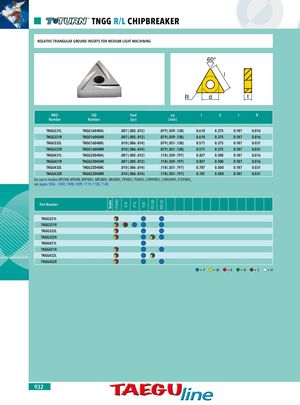

Grade CT3000 K10 P10 P20 TT5100 TT8125 TNGG R/L CHIPBREAKER NEGATIVE TRIANGULAR GROUND INSERTS FOR MEDIUM LIGHT MACHINING 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNGG331L TNGG160404L .007 (.005-.012) .079 (.039-.138) 0.610 0.375 0.187 0.016 TNGG331R TNGG160404R .007 (.005-.012) .079 (.039-.138) 0.610 0.375 0.187 0.016 TNGG332L TNGG160408L .010 (.006-.014) .079 (.051-.138) 0.571 0.375 0.187 0.031 TNGG332R TNGG160408R .010 (.006-.014) .079 (.051-.138) 0.571 0.375 0.187 0.031 TNGG431L TNGG220404L .007 (.005-.012) .118 (.039-.197) 0.827 0.500 0.187 0.016 TNGG431R TNGG220404R .007 (.005-.012) .118 (.039-.197) 0.827 0.500 0.187 0.016 TNGG432L TNGG220408L .010 (.006-.014) .118 (.051-.197) 0.787 0.500 0.187 0.031 TNGG432R TNGG220408R .010 (.006-.014) .118 (.051-.197) 0.787 0.500 0.187 0.031 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L, see pages 1056 - 1059, 1098, 1099, 1119, 1120, 1140. Part Number TNGG331L TNGG331R TNGG332L TNGG332R TNGG431L TNGG431R TNGG432L TNGG432R =P =M =K =N =S =H 932
