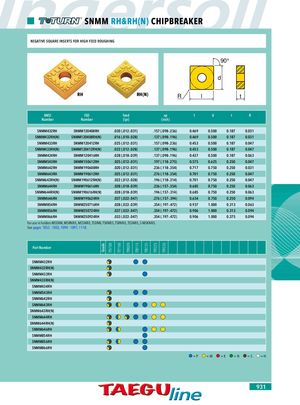

SNMM RH&RH(N) CHIPBREAKER NEGATIVE SQUARE INSERTS FOR HIGH FEED ROUGHING 90° d RH RH(N) R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMM432RH SNMM120408RH .020 (.012-.031) .157 (.098-.236) 0.469 0.500 0.187 0.031 SNMM432RH(N) SNMM120408RH(N) .016 (.010-.028) .137 (.098-.196) 0.469 0.500 0.187 0.031 SNMM433RH SNMM120412RH .025 (.012-.031) .157 (.098-.236) 0.453 0.500 0.187 0.047 SNMM433RH(N) SNMM120412RH(N) .022 (.012-.028) .137 (.098-.196) 0.453 0.500 0.187 0.047 SNMM434RH SNMM120416RH .028 (.018-.039) .137 (.098-.196) 0.437 0.500 0.187 0.063 SNMM543RH SNMM150612RH .025 (.012-.031) .197 (.118-.275) 0.575 0.625 0.250 0.047 SNMM642RH SNMM190608RH .020 (.012-.031) .236 (.118-.354) 0.717 0.750 0.250 0.031 SNMM643RH SNMM190612RH .025 (.012-.031) .276 (.118-.354) 0.701 0.750 0.250 0.047 SNMM643RH(N) SNMM190612RH(N) .022 (.012-.028) .196 (.118-.314) 0.701 0.750 0.250 0.047 SNMM644RH SNMM190616RH .028 (.018-.039) .236 (.157-.354) 0.685 0.750 0.250 0.063 SNMM644RH(N) SNMM190616RH(N) .028 (.018-.039) .196 (.157-.314) 0.685 0.750 0.250 0.063 SNMM646RH SNMM190624RH .037 (.022-.047) .276 (.157-.394) 0.654 0.750 0.250 0.094 SNMM854RH SNMM250716RH .028 (.022-.039) .354 (.197-.472) 0.937 1.000 0.313 0.063 SNMM856RH SNMM250724RH .037 (.022-.047) .354 (.197-.472) 0.906 1.000 0.313 0.094 SNMM866RH SNMM250924RH .033 (.022-.047) .354 (.197-.472) 0.906 1.000 0.375 0.094 For use in holders MSDNN, MSRNR/L, MSSNR/L, TSDNN, TSKNR/L, TSRNR/L, TSSNR/L, S-MSKNR/L. See pages 1053 - 1055, 1094 - 1097, 1118. Part Number SNMM432RH SNMM432RH(N) SNMM433RH SNMM433RH(N) SNMM434RH SNMM543RH SNMM642RH SNMM643RH SNMM643RH(N) SNMM644RH SNMM644RH(N) SNMM646RH SNMM854RH SNMM856RH SNMM866RH =P =M =K =N =S =H 931 Grade TT5100 TT7100 TT8020 TT8115 TT8125 TT9225 TT9235
