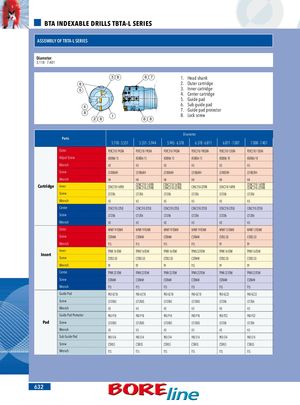

BTA INDEXABLE DRILLS TBTA-L SERIES ASSEMBLY OF TBTA-L SERIES Diameter 5.118 - 7.401 3 8 8 7 1. Head shank 8 2. Outer cartridge 5 3. Inner cartridge 4. Center cartridge 5. Guide pad 4 6. Sub guide pad 8 1 7. Guide pad protector8.Lock screw 2 8 6 8 Diameter Parts 5.118 - 5.551 5.551 - 5.944 5.945 - 6.378 6.378 - 6.811 6.811 - 7.007 7.008 - 7.401 Outer PERC310-19QRA PERC310-19QRA PERC310-19QRA PERC310-190QRA PERC310-13QRA PERC310-13QRA Adjust Screw AS0006-15 AS0006-15 AS0006-15 AS0006-15 AS0006-10 AS0006-10 Wrench H3 H3 H3 H3 H3 H3 Screw LS1806RH LS1806RH LS1806RH LS1806RH LS1805RH LS1805RH Wrench H4 H4 H4 H4 H4 H4 Cartridge Inner CENC310-16TRB CENC310-16TRBCENC310-22TRBCENC310-16TRBCENC310-22TRBCENC310-22TRBCENC310-16TRB CENC310-16TRBCENC310-22TRB Screw LS1206 LS1206 LS1206 LS1206 LS1206 LS1206 Wrench H3 H3 H3 H3 H3 H3 Center CENC310-22TLB CENC310-22TLB CENC310-22TLB CENC310-22TLB CENC310-22TLB CENC310-22TLB Screw LS1206 LS1206 LS1206 LS1206 LS1206 LS1206 Wrench H3 H3 H3 H3 H3 H3 Outer NPMT 19-TDMR NPMT 19-TDMR NPMT 19-TDMR NPMT 19-TDMR NPMT 13-TDMR NPMT 13-TDMR Screw CSTB4M CSTB4M CSTB4M CSTB4M CSTB3.5D CSTB3.5D Wrench T15 T15 T15 T15 T9 T9 Inner TPMX 16-TDM TPMX 16-TDM TPMX 16-TDM TPMX 22-TDM TPMX 16-TDM TPMX 16-TDM Insert Screw CSTB3.5D CSTB3.5D CSTB3.5D CSTB4M CSTB3.5D CSTB3.5D Wrench T9 T9 T9 T15 T9 T9 Center TPMX 22-TDM TPMX 22-TDM TPMX 22-TDM TPMX 22-TDM TPMX 22-TDM TPMX 22-TDM Screw CSTB4M CSTB4M CSTB4M CSTB4M CSTB4M CSTB4M Wrench T15 T15 T15 T15 T15 T15 Guide Pad PAD-GC18 PAD-GC18 PAD-GC18 PAD-GC18 PAD-GC22 PAD-GC22 Screw LS1206S LS1206S LS1206S LS1206S LS1206 LS1206 Wrench H3 H3 H3 H3 H3 H3 Guide Pad Protector PAD-P18 PAD-P18 PAD-P18 PAD-P18 PAD-P22 PAD-P22 Pad Screw LS1206S LS1206S LS1206S LS1206S LS1206 LS1206 Wrench H3 H3 H3 H3 H3 H3 Sub Guide Pad PAD-S14 PAD-S14 PAD-S14 PAD-S14 PAD-S14 PAD-S14 Screw CSTA5S CSTA5S CSTA5S CSTA5S CSTA5S CSTA5S Wrench T15 T15 T15 T15 T15 T15 632
