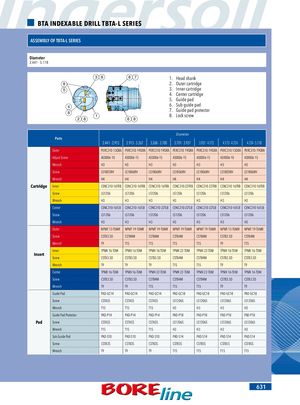

BTA INDEXABLE DRILL TBTA-L SERIES ASSEMBLY OF TBTA-L SERIES Diameter 2.441 - 5.118 3 8 8 7 1. Head shank 8 2. Outer cartridge 5 3. Inner cartridge 4. Center cartridge 5. Guide pad 4 6. Sub guide pad 8 1 7. Guide pad protector8.Lock screw 2 8 6 8 Diameter Parts 2.441 - 2.913 2.913 - 3.267 3.268 - 3.700 3.701 - 3.937 3.937 - 4.173 4.173 - 4.724 4.724 - 5.118 Outer PERC310-13QRA PERC310-19QRA PERC310-19QRA PERC310-19QRA PERC310-19QRA PERC310-13QRA PERC310-19QRA Adjust Screw AS0006-10 AS0006-15 AS0006-15 AS0006-15 AS0006-15 AS0006-10 AS0006-15 Wrench H3 H3 H3 H3 H3 H3 H3 Screw LS1805RH LS1806RH LS1806RH LS1806RH LS1806RH LS1805RH LS1806RH Wrench H4 H4 H4 H4 H4 H4 H4 Cartridge Inner CENC310-16TRB CENC310-16TRB CENC310-16TRB CENC310-22TRB CENC310-22TRB CENC310-16TRB CENC310-16TRB Screw LS1206 LS1206 LS1206 LS1206 LS1206 LS1206 LS1206 Wrench H3 H3 H3 H3 H3 H3 H3 Center CENC310-16TLB CENC310-16TLB CENC310-22TLB CENC310-22TLB CENC310-22TLB CENC310-16TLB CENC310-16TLB Screw LS1206 LS1206 LS1206 LS1206 LS1206 LS1206 LS1206 Wrench H3 H3 H3 H3 H3 H3 H3 Outer NPMT 13-TDMR NPMT 19-TDMR NPMT 19-TDMR NPMT 19-TDMR NPMT 19-TDMR NPMT 13-TDMR NPMT 19-TDMR Screw CSTB3.5D CSTB4M CSTB4M CSTB4M CSTB4M CSTB3.5D CSTB4M Wrench T9 T15 T15 T15 T15 T9 T15 Inner TPMX 16-TDM TPMX 16-TDM TPMX 16-TDM TPMX 22-TDM TPMX 22-TDM TPMX 16-TDM TPMX 16-TDM Insert Screw CSTB3.5D CSTB3.5D CSTB3.5D CSTB4M CSTB4M CSTB3.5D CSTB3.5D Wrench T9 T9 T9 T15 T15 T9 T9 Center TPMX 16-TDM TPMX 16-TDM TPMX 22-TDM TPMX 22-TDM TPMX 22-TDM TPMX 16-TDM TPMX 16-TDM Screw CSTB3.5D CSTB3.5D CSTB4M CSTB4M CSTB4M CSTB3.5D CSTB3.5D Wrench T9 T9 T15 T15 T15 T9 T9 Guide Pad PAD-GC14 PAD-GC14 PAD-GC14 PAD-GC18 PAD-GC18 PAD-GC18 PAD-GC18 Screw CSTA5S CSTA5S CSTA5S LS1206S LS1206S LS1206S LS1206S Wrench T15 T15 T15 H3 H3 H3 H3 Guide Pad Protector PAD-P14 PAD-P14 PAD-P14 PAD-P18 PAD-P18 PAD-P18 PAD-P18 Pad Screw CSTA5S CSTA5S CSTA5S LS1206S LS1206S LS1206S LS1206S Wrench T15 T15 T15 H3 H3 H3 H3 Sub Guide Pad PAD-S10 PAD-S10 PAD-S10 PAD-S14 PAD-S14 PAD-S14 PAD-S14 Screw CSTB3S CSTB3S CSTB3S CSTB5S CSTB5S CSTB5S CSTB5S Wrench T9 T9 T9 T15 T15 T15 T15 631
