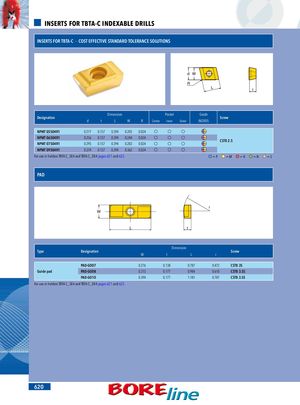

INSERTS FOR TBTA-C INDEXABLE DRILLS INSERTS FOR TBTA-C - COST EFFECTIVE STANDARD TOLERANCE SOLUTIONS d W R L t Dimension Pocket Grade Designation Screw d t L W R Center Inner Outer IN2005 NPMT 05504R1 0.217 0.157 0.394 0.205 0.024 NPMT 06504R1 0.256 0.157 0.394 0.244 0.024 CSTB 2.5 NPMT 07504R1 0.295 0.157 0.394 0.283 0.024 NPMT 09504R1 0.374 0.157 0.394 0.362 0.024 For use in holders TBTA-C_SE4 and TBTA-C_DE4 pages 621 and 622. =P =M =K =N =S PAD r W L t Dimension Type Designation Screw W t L r PAD-GO07 0.276 0.138 0.787 0.472 CSTB 3S Guide pad PAD-GO08 0.315 0.177 0.984 0.610 CSTB 3.5S PAD-GO10 0.394 0.177 1.181 0.787 CSTB 3.5S For use in holders TBTA-C_SE4 and TBTA-C_DE4 pages 621 and 622. 620
