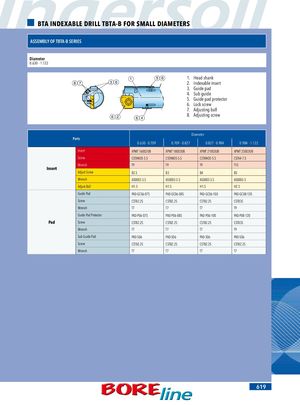

BTA INDEXABLE DRILL TBTA-B FOR SMALL DIAMETERS ASSEMBLY OF TBTA-B SERIES Diameter 0.630 - 1.122 1 5 6 1. Head shank 8 7 3 6 2. Indexable insert 3. Guide pad 4. Sub guide 5. Guide pad protector 6. Lock screw 7. Adjusting ball 6 2 6 4 8. Adjusting screw Diameter Parts 0.630 - 0.709 0.709 - 0.827 0.827 - 0.984 0.984 - 1.122 Insert XPMT 16002UB XPMT 18003UB XPMT 21003UB XPMT 25003UB Screw CSTANO5-5.5 CSTANO5-5.5 CSTANO5-5.5 CSTA4-7.5 Wrench T9 T9 T9 T15 Insert Adjust Screw B2.5 B3 B4 B5 Wrench AS0003-3.5 AS0003-3.5 AS0003-3.5 AS0005-5 Adjust Ball H1.5 H1.5 H1.5 H2.5 Guide Pad PAD-GC06-075 PAD-GC06-085 PAD-GC06-100 PAD-GC08-120 Screw CSTB2.2S CSTB2.2S CSTB2.2S CSTB3S Wrench T7 T7 T7 T9 Guide Pad Protector PAD-P06-075 PAD-P06-085 PAD-P06-100 PAD-P08-120 Pad Screw CSTB2.2S CSTB2.2S CSTB2.2S CSTB3S Wrench T7 T7 T7 T9 Sub Guide Pad PAD-S06 PAD-S06 PAD-S06 PAD-S06 Screw CSTB2.2S CSTB2.2S CSTB2.2S CSTB2.2S Wrench T7 T7 T7 T7 619
