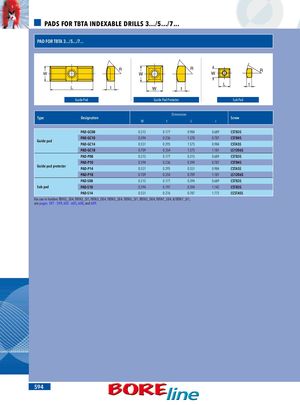

PADS FOR TBTA INDEXABLE DRILLS 3.../5.../7... PAD FOR TBTA 3.../5.../7... R R R W W W L t L t W t Guide Pad Guide Pad Protector Sub Pad Dimension Type Designation Screw W t L r PAD-GC08 0.315 0.177 0.984 0.689 CSTB3S PAD-GC10 0.394 0.236 1.378 0.787 CSTB4S Guide pad PAD-GC14 0.551 0.295 1.575 0.984 CSTA5S PAD-GC18 0.709 0.354 1.575 1.181 LS1206S PAD-P08 0.315 0.177 0.315 0.689 CSTB3S PAD-P10 0.394 0.236 0.394 0.787 CSTB4S Guide pad protector PAD-P14 0.551 0.295 0.551 0.984 CSTA5S PAD-P18 0.709 0.354 0.709 1.181 LS1206S PAD-S08 0.315 0.177 0.394 0.689 CSTB3S Sub pad PAD-S10 0.394 0.197 0.394 1.142 CSTB3S PAD-S14 0.551 0.276 0.787 1.772 CCSTA5S For use in holders TBTA3_SE4, TBTA3_SI1, TBTA3_DE4, TBTA5_SE4, TBTA5_SI1, TBTA5_DE4, TBTA7_SE4, & TBTA7_SI1, see pages 597 - 599, 603 - 605, 608, and 609. 594
